072247 DODGE - SEF4B-IP-315R

Brand - DODGE
Item Number - 072247 DODGE - SEF4B-IP-315R
Category - Steel IMPERIAL-HD Flange 4 Bolt With Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3.9375
Description - SEF4B-IP-315R

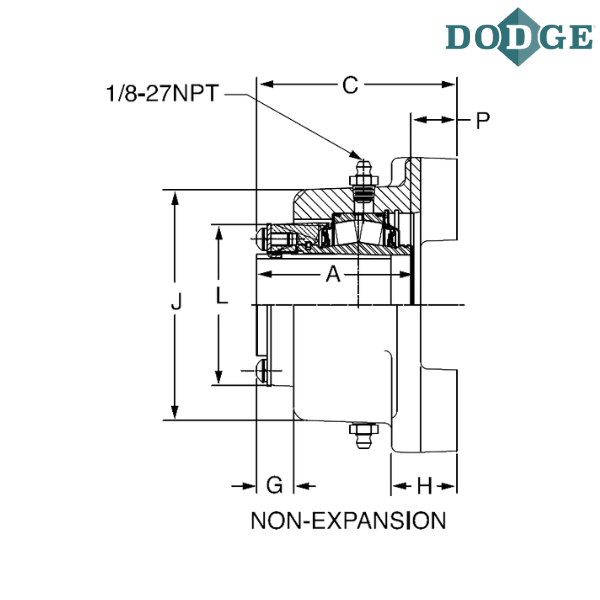

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 9.96
C (inch) - 5.04
Bolt to Bolt Distance (D) inch - 7.75
Bolt Circle (DD) inch - 10.96
Bolt Diameter (F) inch - 0.875
G (inch) - 1.06
H (inch) - 1.5
J (inch) - 8.22
L (inch) - 5.44
N (inch) - 4.68
P (inch) - 0.34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
