072250 DODGE - SEF4B-IP-408R

Brand - DODGE
Item Number - 072250 DODGE - SEF4B-IP-408R

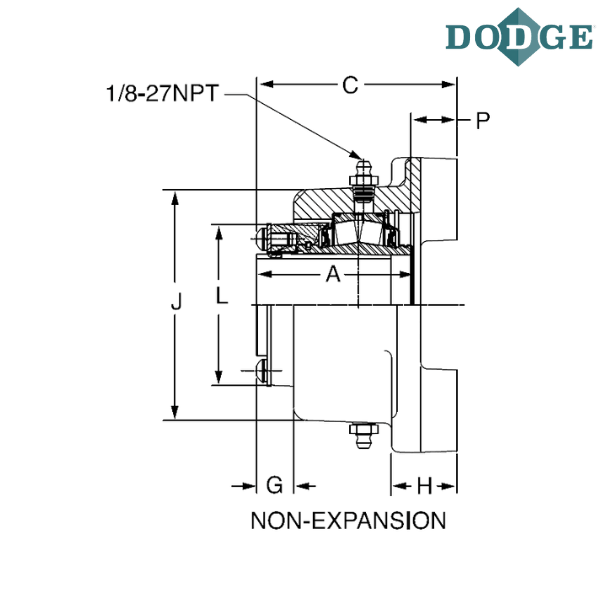

Category - Steel IMPERIAL-HD Flange 4 Bolt With Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 4.5
Description - SEF4B-IP-408R
Length Through Bore (A) inch - 5.23
Overall Length (B) inch - 10.87
C (inch) - 5.59
Bolt to Bolt Distance (D) inch - 8.75
Bolt Circle (DD) inch - 12.38
Bolt Diameter (F) inch - 0.875
G (inch) - 1.38
H (inch) - 1.5
J (inch) - 8.76
L (inch) - 6.35
N (inch) - 4.8
P (inch) - 0.36
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
