072252 DODGE - SEF4B-IP-107RE

Brand - DODGE
Item Number - 072252 DODGE - SEF4B-IP-107RE
Category - Steel IMPERIAL-HD Flange 4 Bolt With Type E Dimensions (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.4375
Description - SEF4B-IP-107RE

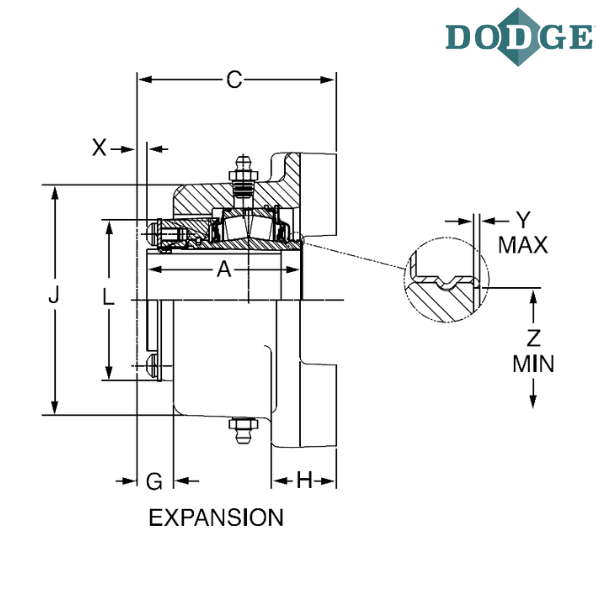

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 4.62
C (inch) - 2.87
Bolt to Bolt Distance (D) inch - 3.5
Bolt Circle (DD) inch - 4.95
Bolt Diameter (F) inch - 0.5
G (inch) - 0.84
H (inch) - 0.88
J (inch) - 3.7
L (inch) - 2.72
N (inch) - 2.25
Total Expansion (X) inch - 0.1875
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
