072254 DODGE - SEF4B-IP-110RE

Brand - DODGE
Item Number - 072254 DODGE - SEF4B-IP-110RE
Category - Steel IMPERIAL-HD Flange 4 Bolt With Type E Dimensions (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.625
Description - SEF4B-IP-110RE

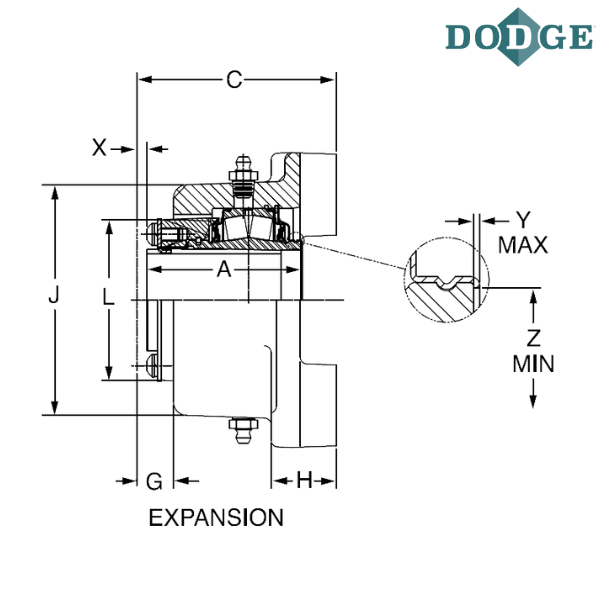

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 5.37
C (inch) - 3.01
Bolt to Bolt Distance (D) inch - 4.13
Bolt Circle (DD) inch - 5.84
Bolt Diameter (F) inch - 0.5
G (inch) - 0.91
H (inch) - 0.88
J (inch) - 4.41
L (inch) - 3
N (inch) - 2.62
Total Expansion (X) inch - 0.21875
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
