072258 DODGE - SEF4B-IP-115RE

Brand - DODGE
Item Number - 072258 DODGE - SEF4B-IP-115RE
Category - Steel IMPERIAL-HD Flange 4 Bolt With Type E Dimensions (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.9375
Description - SEF4B-IP-115RE

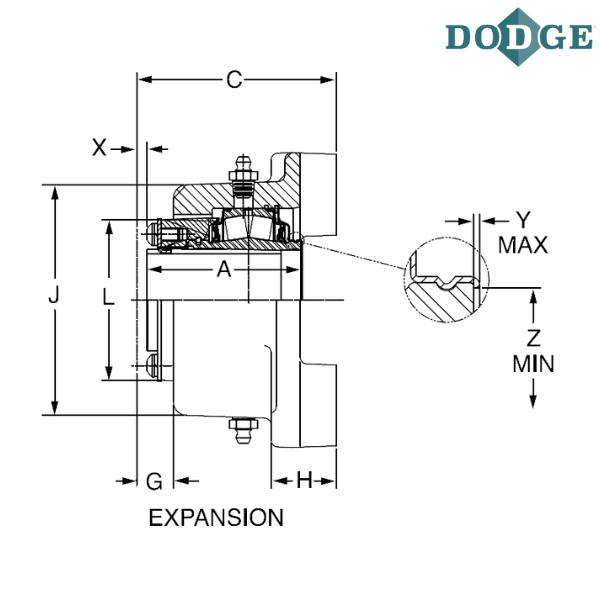

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 5.49
C (inch) - 3.15
Bolt to Bolt Distance (D) inch - 4.38
Bolt Circle (DD) inch - 6.19
Bolt Diameter (F) inch - 0.5
G (inch) - 0.91
H (inch) - 0.88
J (inch) - 4.75
L (inch) - 3.28
N (inch) - 2.75
Total Expansion (X) inch - 0.21875
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
