072262 DODGE - SEF4B-IP-207RE

Brand - DODGE
Item Number - 072262 DODGE - SEF4B-IP-207RE
Category - Steel IMPERIAL-HD Flange 4 Bolt With Type E Dimensions (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.4375
Description - SEF4B-IP-207RE

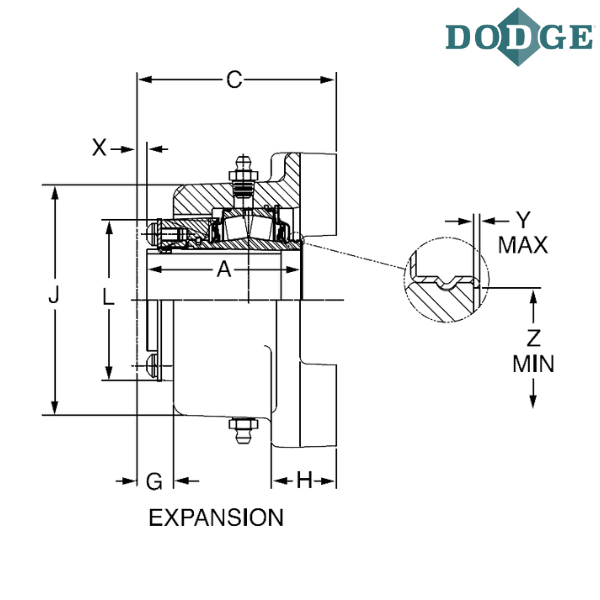

Length Through Bore (A) inch - 3.42
Overall Length (B) inch - 6.62
C (inch) - 3.57
Bolt to Bolt Distance (D) inch - 5.37
Bolt Circle (DD) inch - 7.6
Bolt Diameter (F) inch - 0.625
G (inch) - 0.95
H (inch) - 1
J (inch) - 5.63
L (inch) - 3.8
N (inch) - 3.23
Total Expansion (X) inch - 0.25
Y (inch) - 0.03
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
