072305 DODGE - SFC-IP-415R

Brand - DODGE
Item Number - 072305 DODGE - SFC-IP-415R
Category - Steel IMPERIAL-HD Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 4.9375
Description - SFC-IP-415R

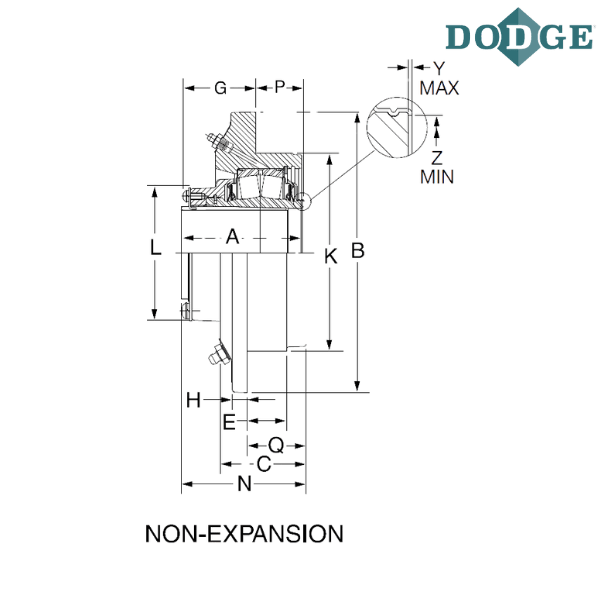

Length Through Bore (A) inch - 5.98
Overall Length (B) inch - 14.75
C (inch) - 4.64
Bolt to Bolt Distance (D) inch - 6.38
Bolt Circle (DD) inch - 12.75
F-Bolt Diameter (inch) - 0.875**
G (inch) - 2.98
H (inch) - 1.03
Pilot Diameter (K)* inch - 11
L (inch) - 7.54
M (inch) - 7/8-9
N (inch) - 6.08
P (inch) - 3
Q (inch) - 3.1
Y (inch) - 0.04
Z (inch) - 5.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000” / -0.002”
** 6 Equally Spaced Mounting Holes

** Images are for representation purposes only
