072319 DODGE - SFC-IP-203RE

Brand - DODGE
Item Number - 072319 DODGE - SFC-IP-203RE
Category - Steel IMPERIAL-HD Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.1875
Description - SFC-IP-203RE

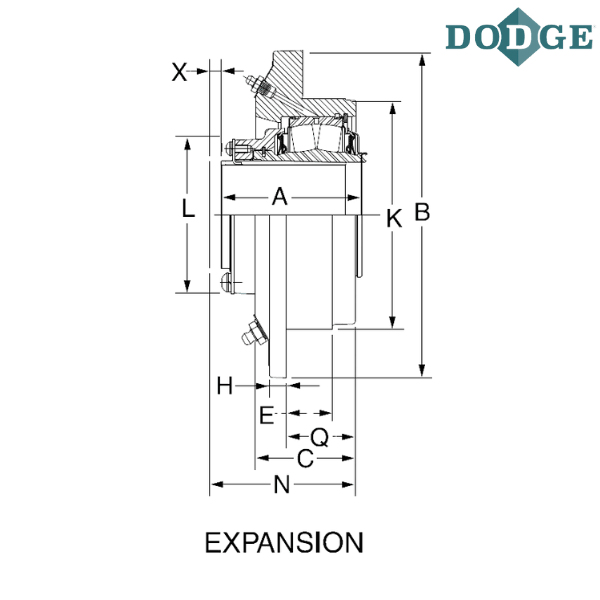

Length Through Bore (A) inch - 3.03
B (inch) - 7.13
C (inch) - 2.42
Bolt to Bolt Distance (D) inch - 4.25
Bolt Circle (DD) inch - 6
Bolt Diameter (F) inch - 0.5
H (inch) - 0.56
Pilot Diameter (K)* inch - 5
L (inch) - 3.5
M (inch) - 1/2-13
N (inch) - 3.34
Q (inch) - 1.55
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

* +0.000” / -0.002”

** Images are for representation purposes only
