072344 DODGE - SFCN-IP-203R

Brand - DODGE
Item Number - 072344 DODGE - SFCN-IP-203R
Category - Steel IMPERIAL-HD Narrow Piloted Flange (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.1875
Description - SFCN-IP-203R

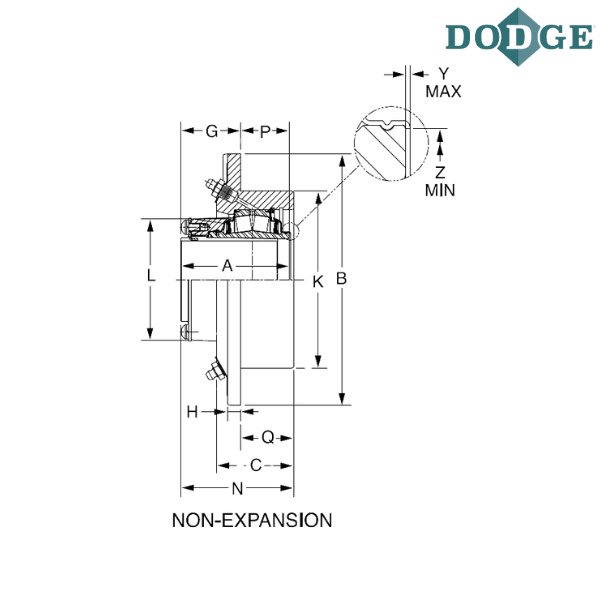

Length Through Bore (A) inch - 3.03
Overall Length (B) inch - 7.3
C (inch) - 2.22
Bolt to Bolt Distance (D) inch - 4.24
Bolt Circle (DD) inch - 6
F-Bolt Diameter (inch) - 0.5
G (inch) - 2.06
H (inch) - 0.58
Pilot Diameter (K)* inch - 5
L (inch) - 3.5
M (inch) - 1/2-13
N (inch) - 3.19
P (inch) - 1
Pilot Depth (Q) inch - 1.13
Y (inch) - 0.02
Z (inch) - 2.59
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
FCN - Narrow Piloted Flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

* +0.000” / -0.002”

** Images are for representation purposes only
