Description
Brand - DODGE
Item Number - 073072 DODGE - LFT-DL-20M
Category - D-LOK® Ball Bearings (DL LFT Normal Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20mm
Description - LFT-DL-20M
Weight (lbs) - 0.8

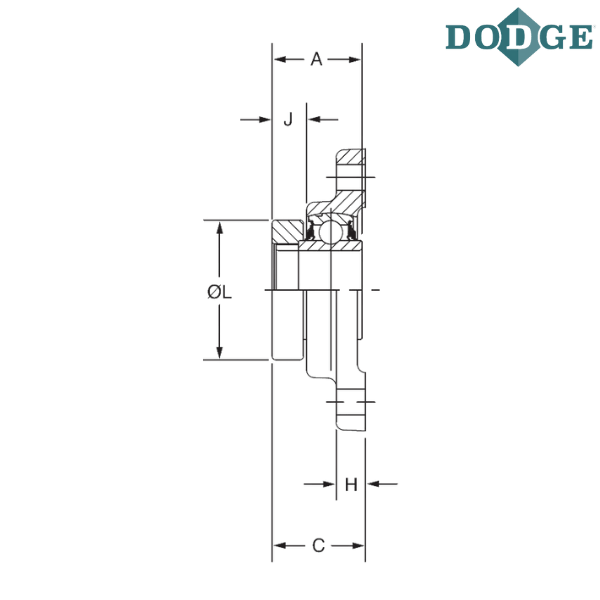

Length Through Bore (A) mm - 32.5
B (mm) - 90.4
C (mm) - 32.3
Bolt Center to Center Length (D) mm - 71.4
G (mm) - 8.6
H (mm) - 10.7
J (mm) - 10.7
L (mm) - 43.4
Overall Width (M) mm - 60.5
N (mm) - 34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - Light duty flange, 2-bolt, with square bolt holes
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric
** Images are for representation purposes only
