073479 DODGE - TB-DL-50M

Brand - DODGE
Item Number - 073479 DODGE - TB-DL-50M
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - TB-DL-50M
Weight (kg) - 3.9

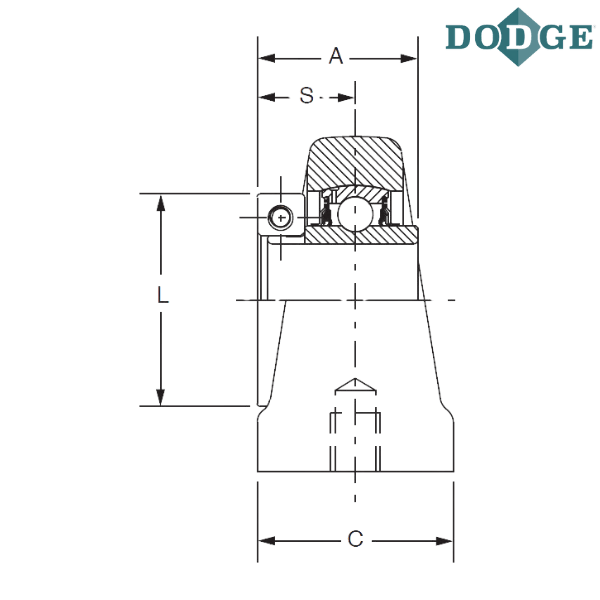

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 139.7
Width (C) mm - 50.8
Bolt Center to Center Length (D) mm - 101.6
Overall Height (J) mm - 117.6
L (mm) - 82.3
Base to Center Height (M) mm - 57.2
Minimum Tap Depth (N) mm - 22.4
Bolt Hole UNC-Thread (R) - M16x2
S (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
