Description
Brand - DODGE
Item Number - 073848 DODGE - TB-DL-30M
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - TB-DL-30M
Weight (kg) - 1.7

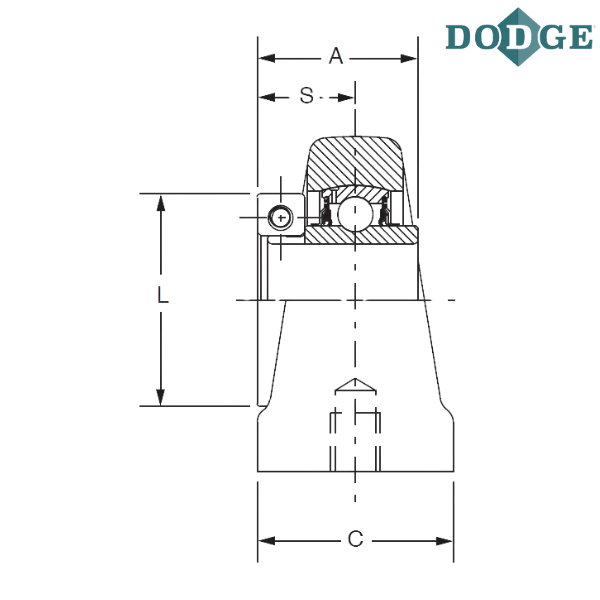

Length Through Bore (A) mm - 39.6
Overall Length (B) mm - 101.6
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 76.2
Overall Height (J) mm - 85.9
L (mm) - 56.4
Base to Center Height (M) mm - 42.9
Minimum Tap Depth (N) mm - 16
Bolt Hole UNC-Thread (R) - M10x1.5
S (mm) - 24.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric
** Images are for representation purposes only
