075052 DODGE - P2B-DLH-55M-E

Brand - DODGE
Item Number - 075052 DODGE - P2B-DLH-55M-E
Category - D-LOK® Ball Bearings (DLH-E Expansion and DLH Non-Expansion Normal Duty Pillow Blocks)
Series - 211
Shaft Size (mm) - 55
Description - P2B-DLH-55M-E
Weight (kg) - 4.8

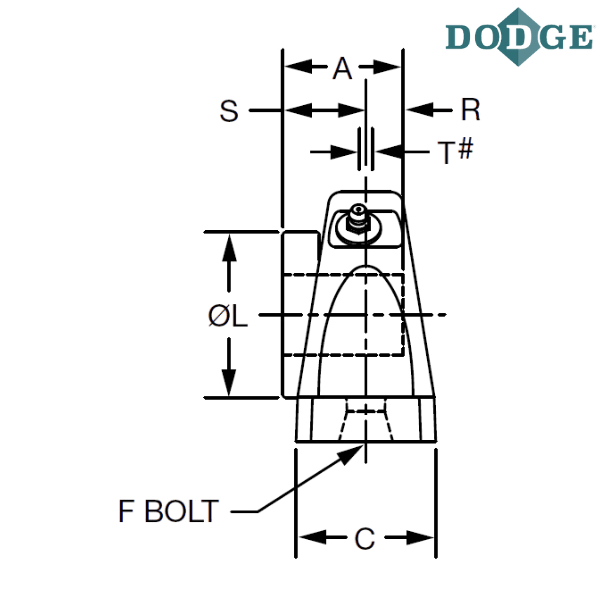

Length Through Bore (A) mm - 57.2
Overall Length (B) mm - 241.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 174.8
Bolt to Bolt Maximum Distance (D max) mm - 201.7
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 137.2
L (mm) - 93.7
Base to Center Height (M) mm - 69.9
R (mm) - 22.4
S (mm) - 34.8
Total Expansion (T) mm - 5.6

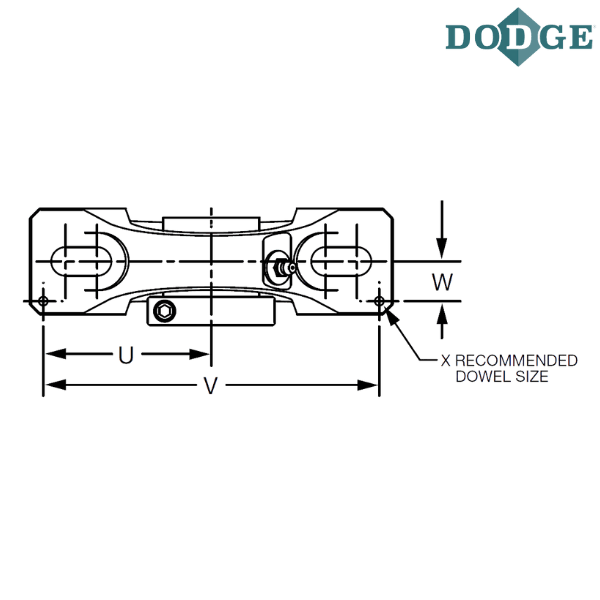

U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
H - High backing height
M - Metric
E - Expansion

** Images are for representation purposes only
