Description
Brand - DODGE
Item Number - 076057 DODGE - F4B-SCED-115
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 4-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - F4B-SCED-115
Weight (lbs) - 6.7

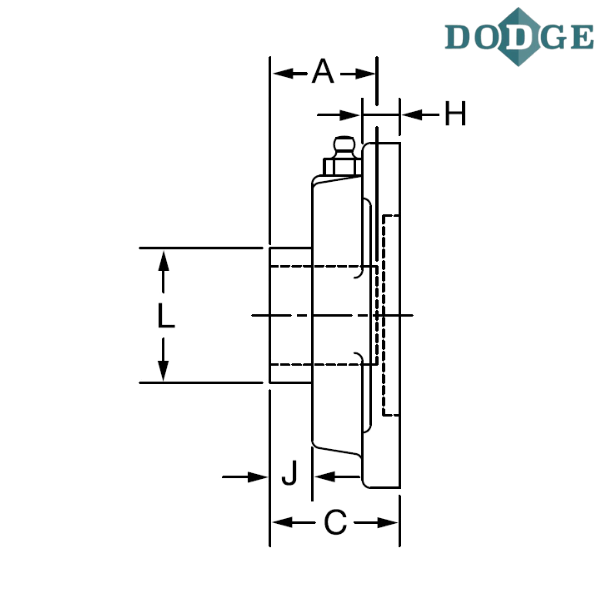

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 5.63
Thickness (C) inch - 2.02
Bolt Center to Center Length (D) inch - 4.38
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.55
L (inch) - 2.43
N (inch) - 2.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCED - Extreme duty
** Images are for representation purposes only
