Description
Brand - DODGE
Item Number - 076143 DODGE - F2B-SCMED-107
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty 2-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.4375
Description - F2B-SCMED-107
Weight (lbs) - 4.1

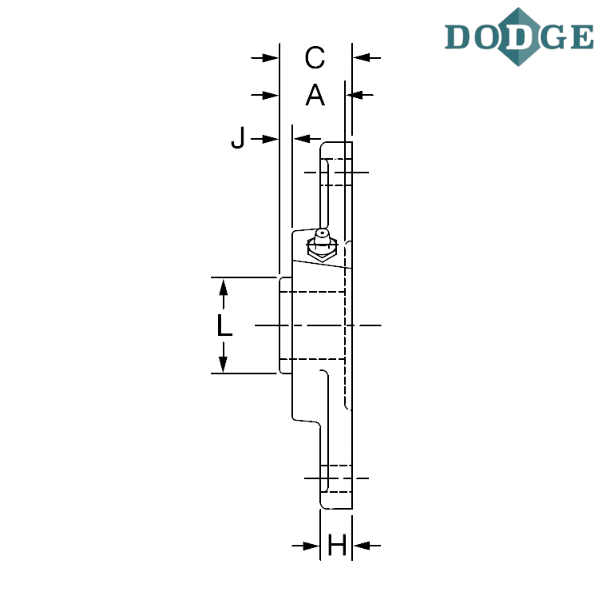

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 6.75
Thickness (C) inch - 1.98
Bolt Center to Center Length (D) inch - 5.66
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.63
L (inch) - 2.05
Overall Width (M) inch - 4.13
N (inch) - 1.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCMED - Extreme medium duty
** Images are for representation purposes only
