Description
Brand - DODGE
Item Number - 076237 DODGE - TB-SCED-50M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty Tapped Base Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - TB-SCED-50M
Weight (kg) - 0.21

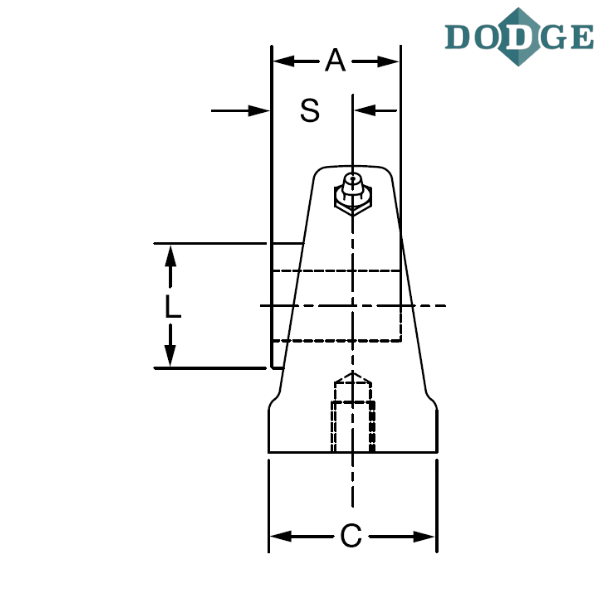

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 139.7
Overall Width (C) mm - 50.8
Bolt Center to Center Length (D) mm - 101.6
Overall Height (J) mm - 117.6
L (mm) - 61.7
Base to Center Height (M) mm - 57.2
N (mm) - 22.4
R (mm) - M16x2
S (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
