Description
Brand - DODGE
Item Number - 076239 DODGE - F2B-SCED-20M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - F2B-SCED-20M
Weight (kg) - 0.5

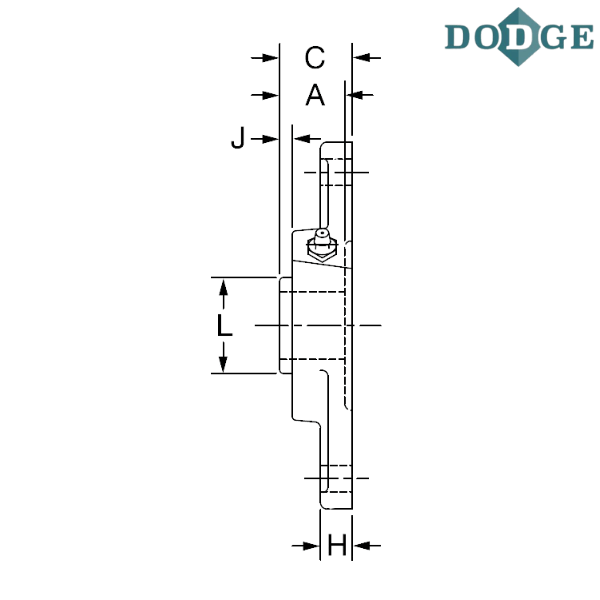

Length Through Bore (A) mm - 31.2
Overall Length (B) mm - 112
Thickness (C) mm - 34
Bolt Center to Center Length (D) mm - 89.7
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 9.1
L (mm) - 28.4
Overall Width (M) mm - 60.5
N (mm) - 38.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
