Description
Brand - DODGE
Item Number - 076247 DODGE - F4B-SCED-25M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 4-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25mm
Description - F4B-SCED-25M
Weight (kg) - 0.9

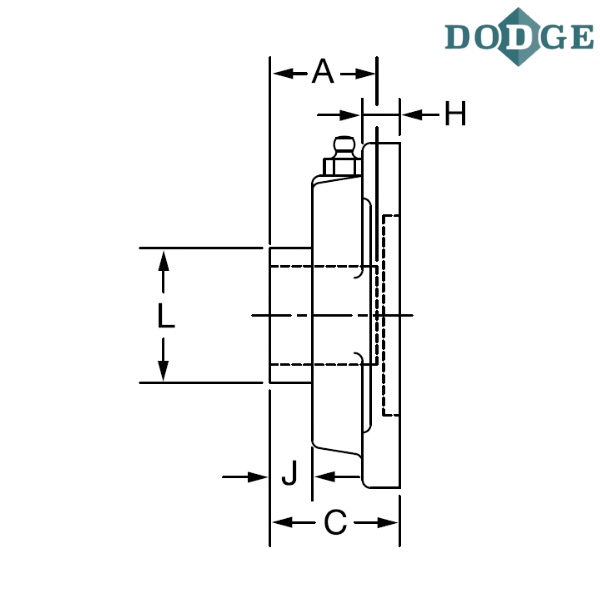

Length Through Bore (A) mm - 34
Overall Length (B) mm - 95.3
Thickness (C) mm - 34.8
Bolt Center to Center Length (D) mm - 69.9
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 10.7
L (mm) - 33.5
N (mm) - 52.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
