Description
Brand - DODGE
Item Number - 076253 DODGE - F4B-SCED-55M
Category - Extreme Duty Setscrew Ball Bearings (SCED Normal Duty 4-Bolt Flange Bearings)
Series - 211
Shaft Size (mm) - 55mm
Description - F4B-SCED-55M
Weight (kg) - 4.1

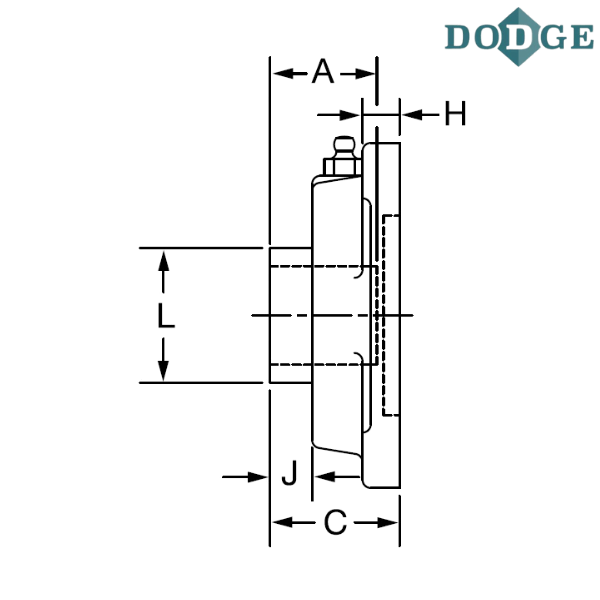

Length Through Bore (A) mm - 56.4
Overall Length (B) mm - 165.1
Thickness (C) mm - 57.9
Bolt Center to Center Length (D) mm - 130.2
F-Bolt Diameter - M16
H (mm) - 17.5
J (mm) - 17.3
L (mm) - 68.8
N (mm) - 82.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCED - Extreme duty
M - Metric
** Images are for representation purposes only
