076312 DODGE - F2B-SCMED-50M

Brand - DODGE
Item Number - 076312 DODGE - F2B-SCMED-50M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty 2-Bolt Flange Bearings)
Series - 211
Shaft Size (mm) - 50
Description - F2B-SCMED-50M
Weight (kg) - 2.9

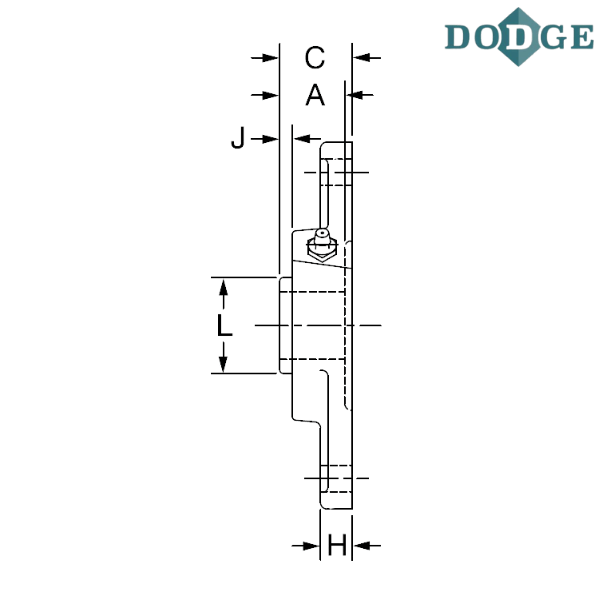

Length Through Bore (A) mm - 56.4
Overall Length (B) mm - 219.2
Thickness (C) mm - 57.9
Bolt Center to Center Length (D) mm - 184.2
F-Bolt Diameter - M16
H (mm) - 17
J (mm) - 17.3
L (mm) - 68.8
Overall Width (M) mm - 133.4
N (mm) - 57.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SCMED - Extreme medium duty
M - Metric

** Images are for representation purposes only
