Description
Brand - DODGE
Item Number - 076313 DODGE - F4B-SCMED-25M
Category - Extreme Duty Setscrew Ball Bearings (SCMED Medium Duty 4-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 25mm
Description - F4B-SCMED-25M
Weight (kg) - 1.3

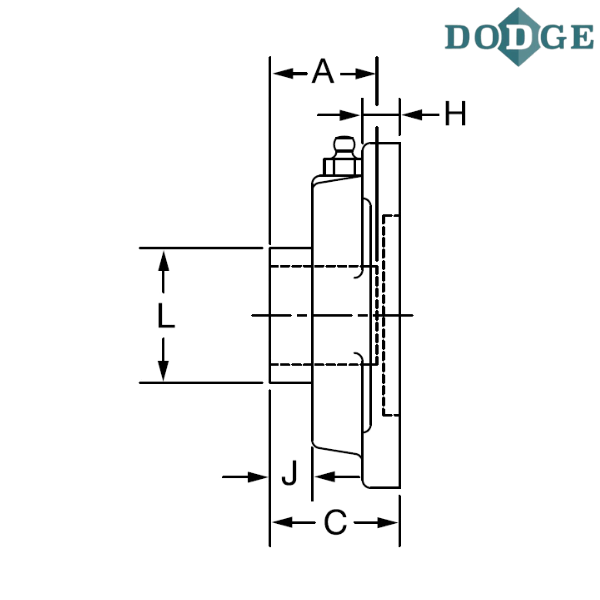

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 108
Thickness (C) mm - 39.6
Bolt Center to Center Length (D) mm - 82.6
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 12.4
L (mm) - 39.9
N (mm) - 55.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
SCMED - Extreme medium duty
M - Metric
** Images are for representation purposes only
