076558 DODGE - F2B-SC-55M-HT

Brand - DODGE
Item Number - 076558 DODGE - F2B-SC-55M-HT
Category - High Temperature Setscrew Ball Bearing (2-Bolt Flanges)
Series - 211
Description - F2B-SC-55M-HT
Shaft Size (mm) - 55
Weight (kg) - 3

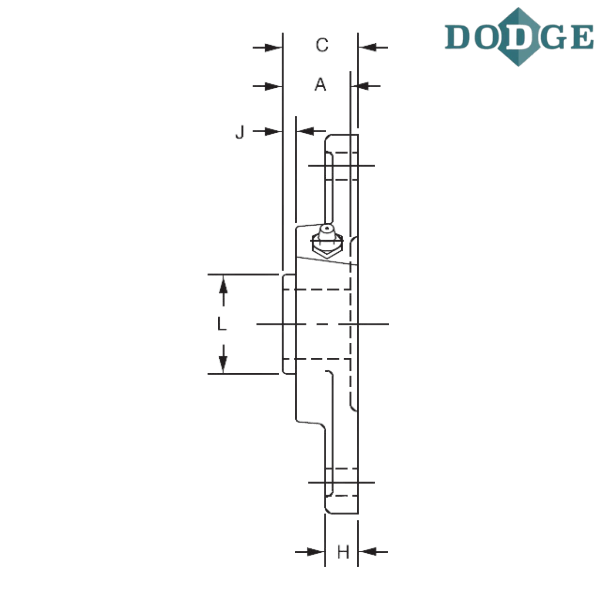

Length Through Bore (A) mm - 56.4
Overall Length (B) mm - 219.2
Thickness (C) mm - 57.9
Bolt Center to Center Length (D) mm - 184.2
F-Bolt Diameter - M16
H (mm) - 17
J (mm) - 17.3
L (mm) - 68.8
Overall Width (M) mm - 133.4
N (mm) - 57.7

Notes :
F2B - 2 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
