076670 DODGE - P2B513-ISN-208 LS

Brand - DODGE
Item Number - 076670 DODGE - P2B513-ISN-208-LS
Category - ISN Plummer Blocks With Labyrinth Seals (Expansion Bearing)
Series - 513
Shaft Size (inch) - 2.5
Description - P2B513-ISN-208-LS

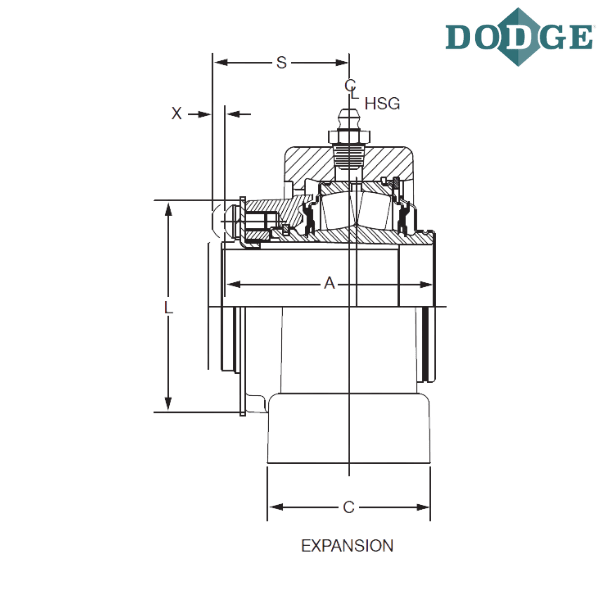

Length Through Bore (A) mm - 86.9
Overall Length (B) mm - 274.9
Width (C) mm - 80.2
Bolt to Bolt Minimum Distance (D min) mm - 205
Bolt to Bolt Maximum Distance (D max) mm - 235
F-Bolt Diameter - M16
G (mm) - 33
H (mm) - 30
Overall Height (J) mm - 152.4
L (mm) - 96.5
Base to Center Height (M) mm - 80
S (mm) - 56.3
Total Expansion (X) mm - 7

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
L - Expansion (Non-Locating)
S - Labyrinth Seal

** Images are for representation purposes only
