077231 DODGE - P2B-EXL-200R

Brand - DODGE
Item Number - 077231 DODGE - P2B-EXL-200R
Category - 2-Bolt Base Type EXL Pillow Block (Non-Expansion)
Shaft Size (inch) - 2.0
Part Name (Non-Expansion) - P2B-EXL-200R
Part Number (Expansion) - 077254
Part Name (Expansion) - P2B-EXL-200RE
Approximate Weight (lbs) - 19

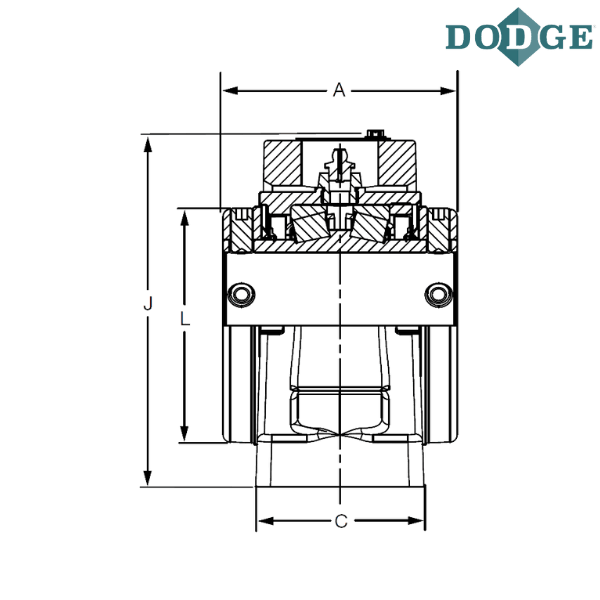

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 8.88
C (inch) - 2.54
Bolt to Bolt Minimum Distance (D min) inch - 6.31
Bolt to Bolt Maximum Distance (D max) inch - 7.19
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.19
H (inch) - 1.31
J (inch) - 4.99
L (inch) - 3.44
Base to Center Height (M) inch - 2.25
P (inch) - 5.56
EXP* (inch) - 0.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
EXL - Type EXL
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
