077232 DODGE - P2B-EXL-203R

Brand - DODGE
Item Number - 077232 DODGE - P2B-EXL-203R
Category - 2-Bolt Base Type EXL Pillow Block (Non-Expansion)
Shaft Size (inch) - 2.1875
Part Name (Non-Expansion) - P2B-EXL-203R
Part Number (Expansion) - 077255
Part Name (Expansion) - P2B-EXL-203RE
Approximate Weight (lbs) - 24

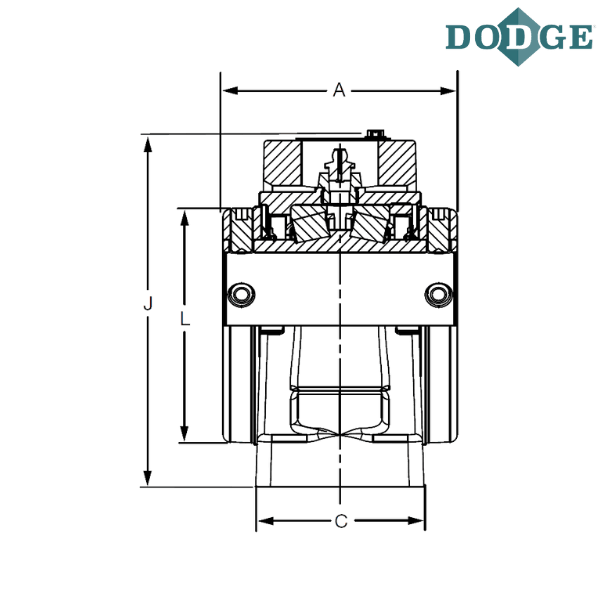

Length Through Bore (A) inch - 3.75
Overall Length (B) inch - 9.62
C (inch) - 2.65
Bolt to Bolt Minimum Distance (D min) inch - 6.69
Bolt to Bolt Maximum Distance (D max) inch - 7.94
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.38
H (inch) - 1.5
J (inch) - 5.42
L (inch) - 3.75
Base to Center Height (M) inch - 2.5
P (inch) - 6
EXP* (inch) - 0.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
EXL - Type EXL
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
