077240 DODGE - P2B-EXL-303R

Brand - DODGE
Item Number - 077240 DODGE - P2B-EXL-303R
Category - 2-Bolt Base Type EXL Pillow Block (Non-Expansion)
Shaft Size (inch) - 3.1875
Part Name (Non-Expansion) - P2B-EXL-303R
Part Number (Expansion) - 077263
Part Name (Expansion) - P2B-EXL-303RE
Approximate Weight (lbs) - 73

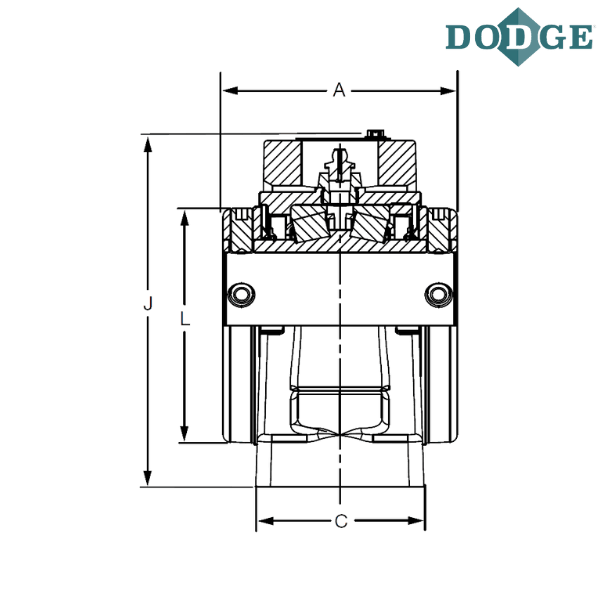

Length Through Bore (A) inch - 5
Overall Length (B) inch - 13.75
C (inch) - 4
Bolt to Bolt Minimum Distance (D min) inch - 10.12
Bolt to Bolt Maximum Distance (D max) inch - 11.75
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.82
H (inch) - 2.25
J (inch) - 7.97
L (inch) - 5.5
Base to Center Height (M) inch - 3.75
P (inch) - 9.31
EXP* (inch) - 0.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
EXL - Type EXL
R - “XTS” Triple Lip Seal

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
