Description
Brand - DODGE
Item Number - 125720 DODGE - F4B-SXV-17M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 4-Bolt Flange Bearings)
Series - 203
Shaft Size (mm) - 17
Description - F4B-SXV-17M
Weight (kg) - 0.5

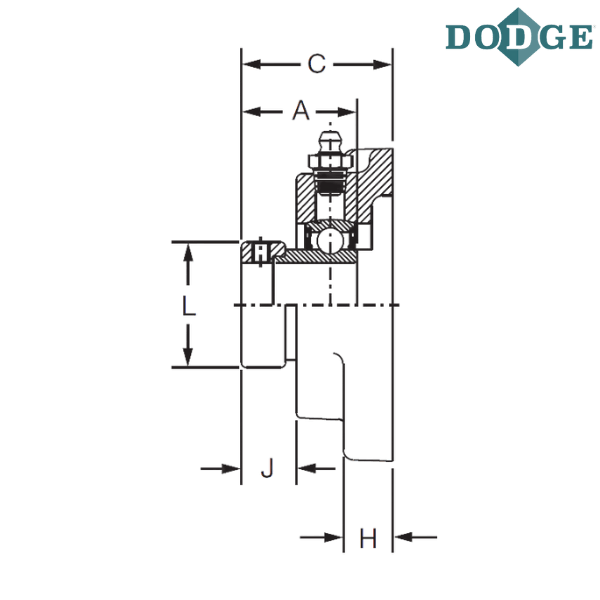

Length Through Bore (A) mm - 28.7
Overall Length (B) mm - 76.2
Thickness (C) mm - 35.6
Bolt Center to Center Length (D) mm - 54
F-Bolt Diameter - M10
H (mm) - 11.2
J (mm) - 14
L (mm) - 28.7
N (mm) - 42.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
