Description
Brand - DODGE
Item Number - 125722 DODGE - F4B-SXV-25M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 4-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F4B-SXV-25M
Weight (kg) - 0.9

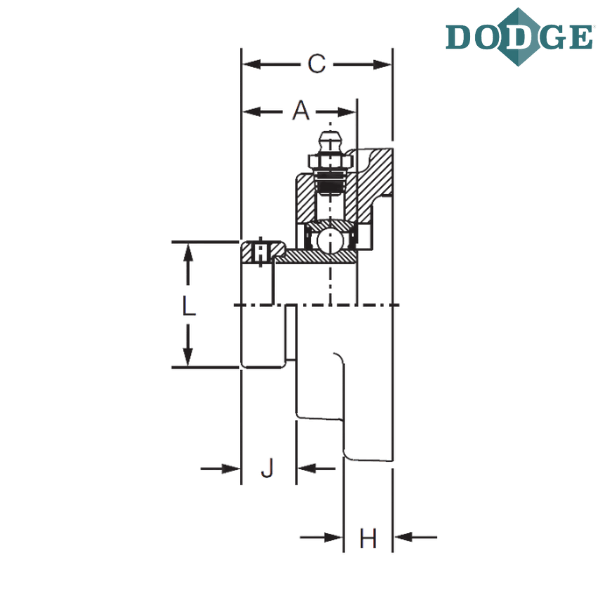

Length Through Bore (A) mm - 31
Overall Length (B) mm - 95.3
Thickness (C) mm - 38.4
Bolt Center to Center Length (D) mm - 69.9
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 14.2
L (mm) - 38.1
N (mm) - 52.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
