Description
Brand - DODGE
Item Number - 125723 DODGE - F4B-SXV-30M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 4-Bolt Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - F4B-SXV-30M
Weight (kg) - 1.4

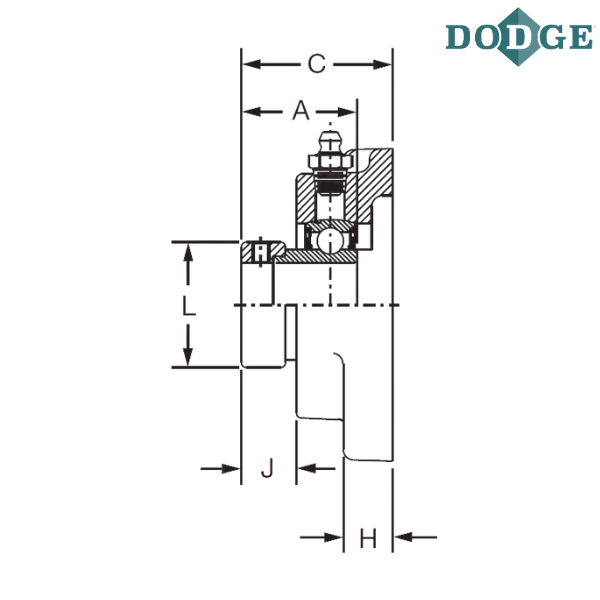

Length Through Bore (A) mm - 35.8
Overall Length (B) mm - 108
Thickness (C) mm - 42.4
Bolt Center to Center Length (D) mm - 82.6
F-Bolt Diameter - M10
H (mm) - 12.7
J (mm) - 15.5
L (mm) - 44.5
N (mm) - 55.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
