Description
Brand - DODGE
Item Number - 125726 DODGE - F4B-SXV-45M
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 4-Bolt Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - F4B-SXV-45M
Weight (kg) - 2.7

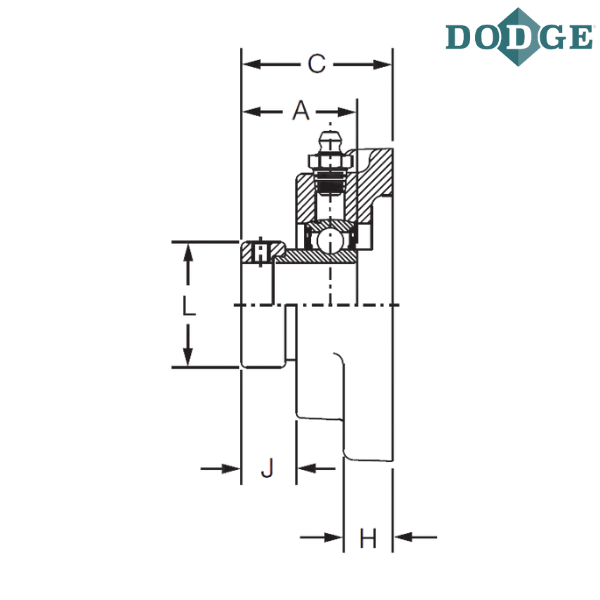

Length Through Bore (A) mm - 42.9
Overall Length (B) mm - 136.7
Thickness (C) mm - 52.6
Bolt Center to Center Length (D) mm - 104.8
F-Bolt Diameter - M12
H (mm) - 16
J (mm) - 16.8
L (mm) - 63.5
N (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
M - Metric
** Images are for representation purposes only
