Description
Brand - DODGE
Item Number - 125865 DODGE - FC-SC-30M
Category - Setscrew Ball Bearings (SC Normal Duty Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - FC-SC-30M
Weight (kg) - 1.3

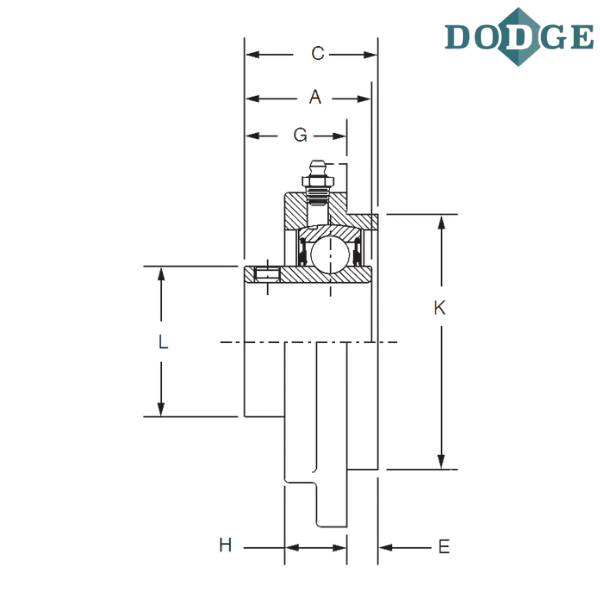

Length Through Bore (A) mm - 38.6
Overall Width (B) mm - 111.3
Thickness (C) mm - 38.9
Bolt Circle (D) mm - 92.2
E (mm) - 6.4
F-Bolt Diameter - M10
G (mm) - 32.5
H (mm) - 20.6
K (mm) - 76.20/76.15
L (mm) - 39.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
