Description
Brand - DODGE
Item Number - 125867 DODGE - FC-SC-40M
Category - Setscrew Ball Bearings (SC Normal Duty Piloted Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - FC-SC-40M
Weight (kg) - 2

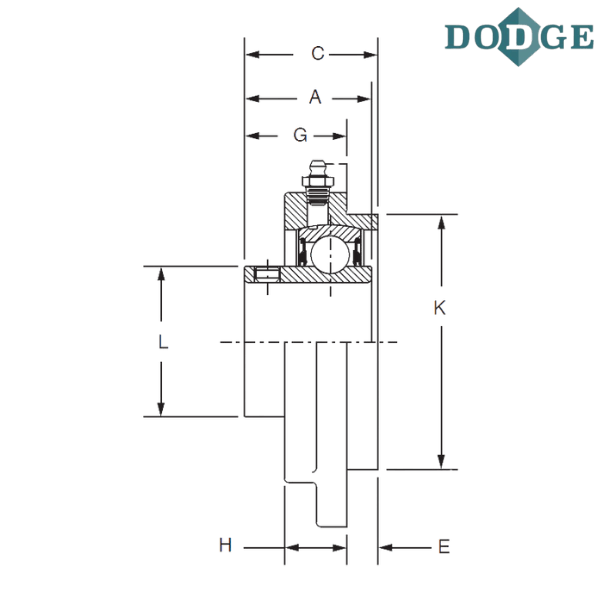

Length Through Bore (A) mm - 49.3
Overall Width (B) mm - 133.4
Thickness (C) mm - 50.3
Bolt Circle (D) mm - 111.3
E (mm) - 11.2
F-Bolt Diameter - M12
G (mm) - 39.1
H (mm) - 22.6
K (mm) - 92.08/92.02
L (mm) - 52.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
