Description
Brand - DODGE
Item Number - 125868 DODGE - FC-SC-45M
Category - Setscrew Ball Bearings (SC Normal Duty Piloted Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - FC-SC-45M
Weight (kg) - 2.4

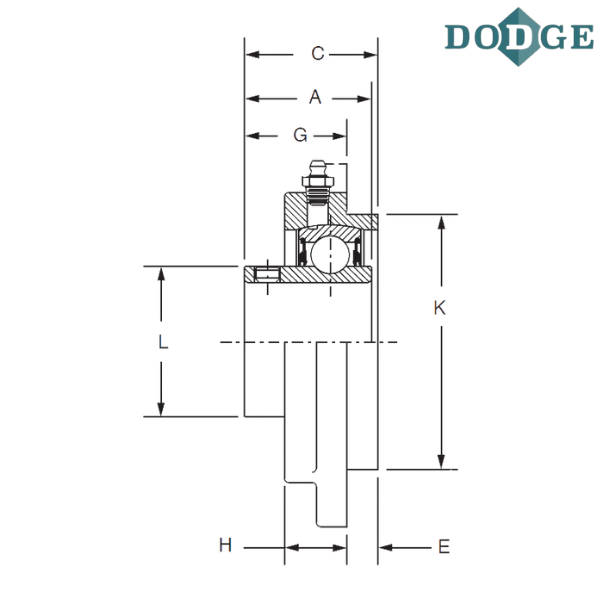

Length Through Bore (A) mm - 49.3
Overall Width (B) mm - 146.1
Thickness (C) mm - 49.5
Bolt Circle (D) mm - 120.7
E (mm) - 11.2
F-Bolt Diameter - M12
G (mm) - 38.4
H (mm) - 23.1
K (mm) - 101.60/101.55
L (mm) - 56.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
