Description
Brand - DODGE
Item Number - 125870 DODGE - FC-SC-55M
Category - Setscrew Ball Bearings (SC Normal Duty Piloted Flange Bearings)
Series - 211
Shaft Size (mm) - 55
Description - FC-SC-55M
Weight (kg) - 3.3

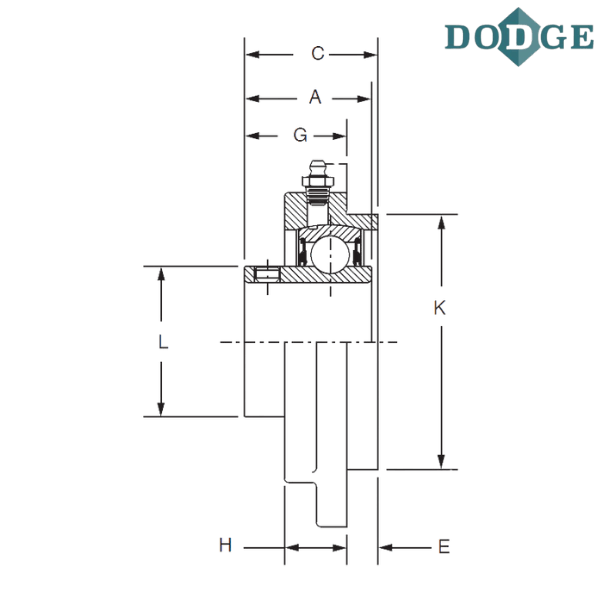

Length Through Bore (A) mm - 56.4
Overall Width (B) mm - 162.1
Thickness (C) mm - 59.7
Bolt Circle (D) mm - 136.7
E (mm) - 16
F-Bolt Diameter - M12
G (mm) - 43.7
H (mm) - 25.4
K (mm) - 114.30/114.25
L (mm) - 68.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Flanged cartridge
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
