125885 DODGE - F4B-SC-17M

Brand - DODGE
Item Number - 125885 DODGE - F4B-SC-17M
Category - Setscrew Ball Bearings (SC Normal Duty 4-Bolt Flange Bearings)
Series - 203
Shaft Size (mm) - 17
Description - F4B-SC-17M
Description (No-Lube/Seal for Life) - F4B-SC-17M-NL
Weight (kg) - 0.5

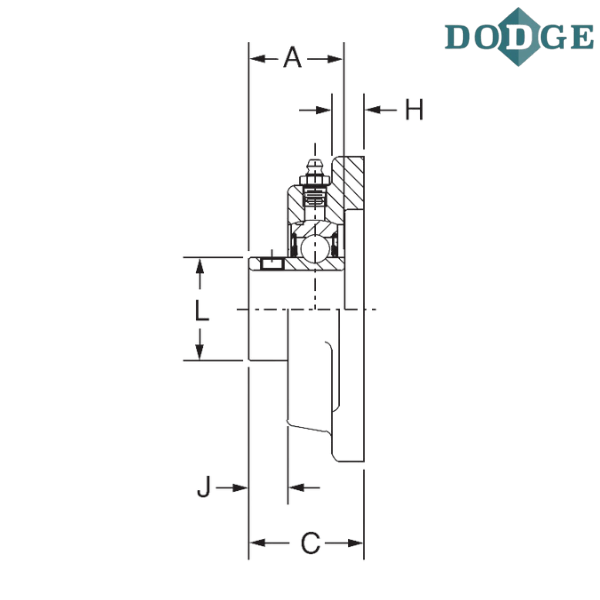

Length Through Bore (A) mm - 25.4
Overall Length (B) mm - 76.2
Thickness (C) mm - 29.7
Bolt Center to Center Length (D) mm - 54
F-Bolt Diameter - M10
H (mm) - 11.2
J (mm) - 8.1
L (mm) - 24.4
N (mm) - 42.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking

** Images are for representation purposes only
