Description
Brand - DODGE
Item Number - 125911 DODGE - WSTU-SC-25M
Category - Setscrew Ball Bearings (SC Normal Duty Wide Slot Take-Up Bearings)
Series - 205
Shaft Size (mm) - 25
Description - WSTU-SC-25M
Description (No Lube, Sealed for Life) - WSTU-SC-25M-NL
Weight (kg) - 1
Take-Up Frame Size - WS300

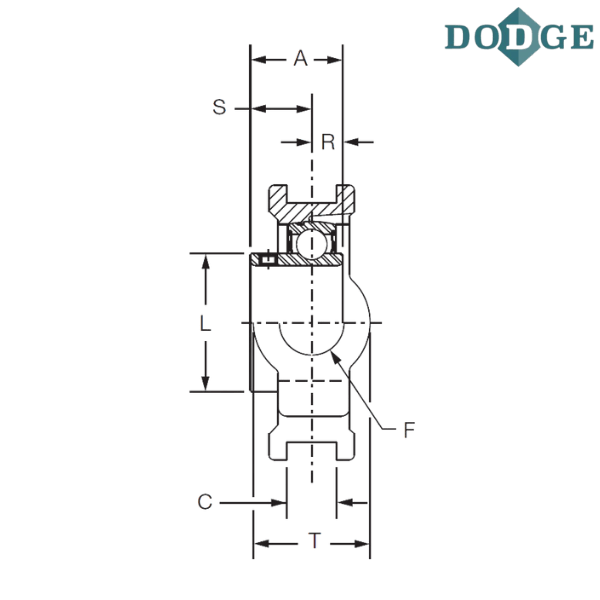

Length Through Bore (A) mm - 34
Overall Length (B) mm - 96.8
C (mm) - 13.49
D (mm) - 50.8
E (mm) - 62
F (Screw Diameter) mm - 15.9
G (mm) - 9.7
H (mm) - 16
J (mm) - 50.8
K (mm) - 33.3
L (mm) - 33.5
M (mm) - 75.82/76.58
Overall Width (N) mm - 92.2
R (mm) - 14.2
S (mm) - 19.8
T (mm) - 35.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
** Images are for representation purposes only
