126615 DODGE - F2B-DL-40M

Brand - DODGE
Item Number - 126615 DODGE - F2B-DL-40M
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F2B-DL-40M
Part Number (No Lube/Sealed for Life) - 062379
Description (No Lube/Sealed for Life) - F2B-DL-40M-NL
Weight (kg) - 2.2

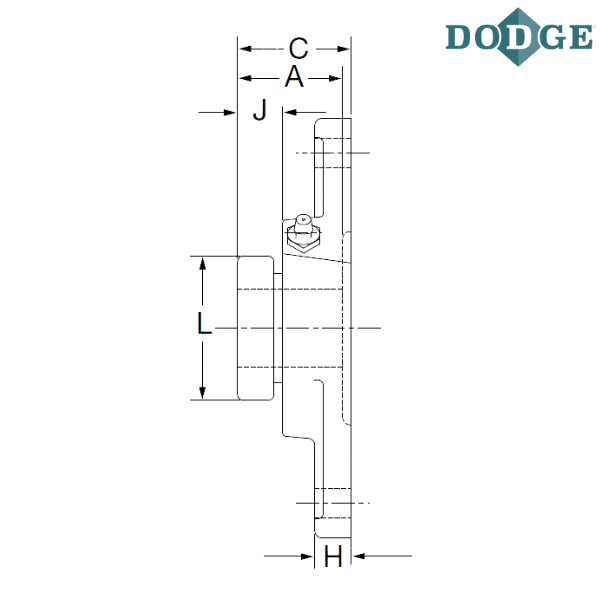

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 171.5
Thickness (C) mm - 52.1
Bolt Center to Center Length (D) mm - 143.8
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 17.8
L (mm) - 69.6
Overall Width (M) mm - 104.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
