Description
Brand - DODGE
Item Number - 126640 DODGE - P2B-DLM-65M
Category - D-LOK® Ball Bearings (DLM Medium Duty Pillow Blocks)
Series - 214
Shaft Size (mm) - 65
Description - P2B-DLM-65M
Weight (kg) - 6.9

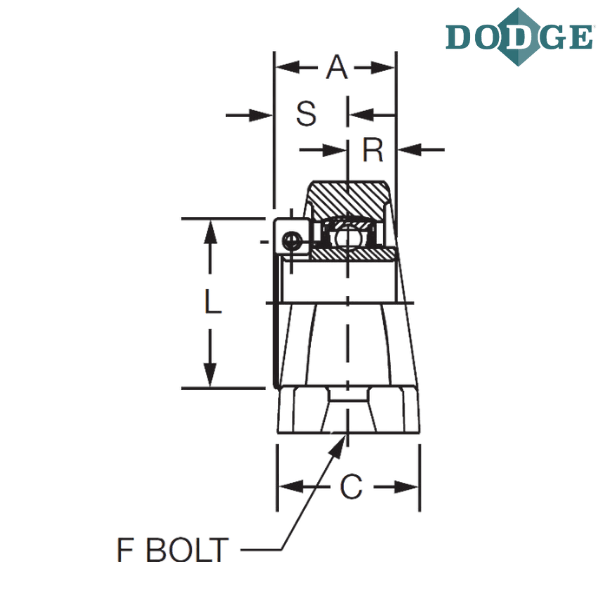

Length Through Bore (A) mm - 66
Overall Length (B) mm - 273.1
Width (C) mm - 68.3
Bolt to Bolt Minimum Distance (D min) mm - 190.5
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M18
G (mm) - 33.5
H (mm) - 23.9
Overall Height (J) mm - 154.7
L (mm) - 111.3
Base to Center Height (M) mm - 76.2
R (mm) - 26.9
S (mm) - 39.1

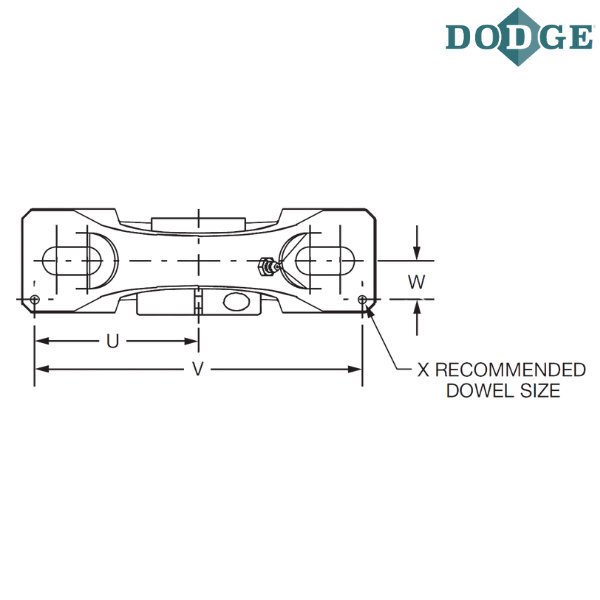

U (mm) - 124
V (mm) - 247.9
W (mm) - 23.9
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
M - Metric
** Images are for representation purposes only
