126648 DODGE - F2BZ-DL-30M

Brand - DODGE
Item Number - 126648 DODGE - F2BZ-DL-30M
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 206
Shaft Size (mm) - 30
Description - F2BZ-DL-30M
Weight (kg) - 1.1

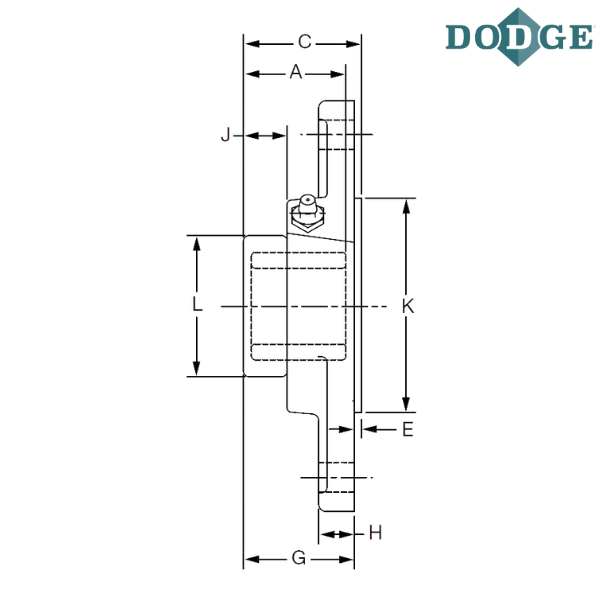

Length Through Bore (A) mm - 39.6
Overall Length (B) mm - 141.2
Thickness (C) mm - 43.7
Bolt Center to Center Length (D) mm - 116.7
Pilot Depth (E) mm - 3
F-Bolt Diameter - M10
G (mm) - 40.6
H (mm) - 12.7
J (mm) - 13.5
Pilot Diameter (K) mm - 80.01/79.96
L (mm) - 56.4
M (mm) - 79.5
N (mm) - 39.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2-bolt flange with pilot machined on the back side
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
