Description
Brand - DODGE
Item Number - 126649 DODGE - F2BZ-DL-35M
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 207
Shaft Size (mm) - 35
Description - F2BZ-DL-35M
Weight (kg) - 1.6

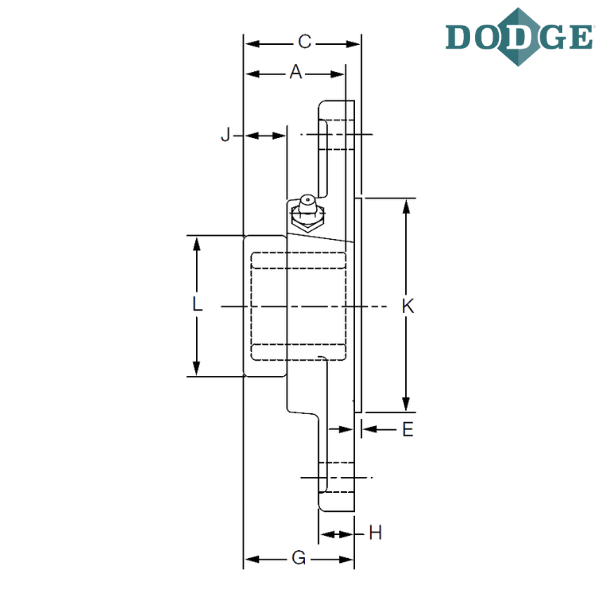

Length Through Bore (A) mm - 44.5
Overall Length (B) mm - 155.7
Thickness (C) mm - 49.5
Bolt Center to Center Length (D) mm - 130
Pilot Depth (E) mm - 4.1
F-Bolt Diameter - M12
G (mm) - 45.5
H (mm) - 14.2
J (mm) - 14.5
Pilot Diameter (K) mm - 89.99/89.94
L (mm) - 68.3
M (mm) - 95.3
N (mm) - 46.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2BZ - 2-bolt flange with pilot machined on the back side
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric
** Images are for representation purposes only
