126651 DODGE - F2BZ-DL-45M

Brand - DODGE
Item Number - 126651 DODGE - F2BZ-DL-45M
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 209
Shaft Size (mm) - 45
Description - F2BZ-DL-45M
Weight (kg) - 2.4

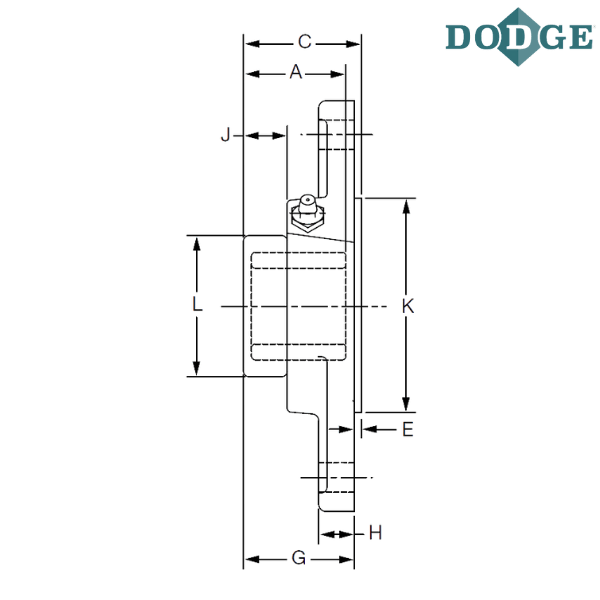

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 179.3
Thickness (C) mm - 56.4
Bolt Center to Center Length (D) mm - 148.3
Pilot Depth (E) mm - 4.1
F-Bolt Diameter - M14
G (mm) - 52.3
H (mm) - 16
J (mm) - 16.8
Pilot Diameter (K) mm - 105.00/104.95
L (mm) - 75.9
M (mm) - 111.3
N (mm) - 48.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2-bolt flange with pilot machined on the back side
DL - Wide inner ring, normal duty, concentric clamp collar
M - Metric

** Images are for representation purposes only
