Description
Brand - DODGE
Item Number - 127635 DODGE - F4B-DLEZ-25M-PCR
Category - E-Z KLEEN Mounted Bearings (DLEZ Normal Duty Polymer Housed 4-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - F4B-DLEZ-25M-PCR
Description (With Insert With Flingers) - F4B-DLEZ-25M-P
Weight (kg) - 0.3

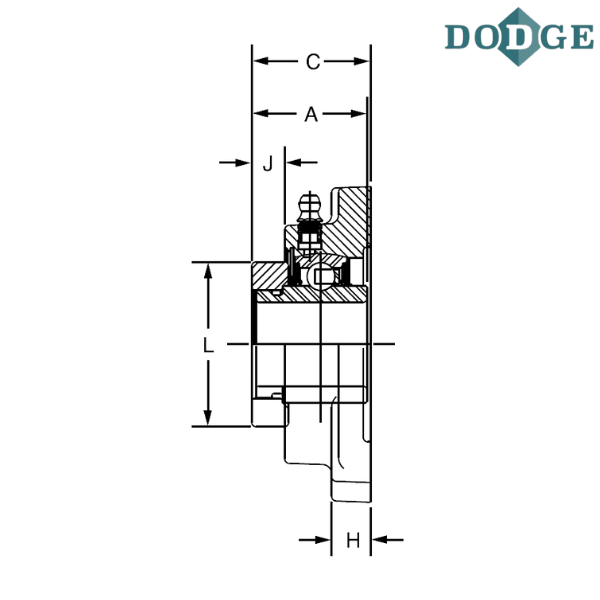

Length Through Bore (A) mm - 36.6
Overall Length (B) mm - 95.3
Thickness (C) mm - 40.6
Bolt Center to Center Length (D) mm - 69.9
F-Bolt Diameter - M10
H (mm) - 13.7
J (mm) - 11.7
L (mm) - 50.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert
** Images are for representation purposes only
