127654 DODGE - WSTU-DLEZ-30M-PCR

Brand - DODGE
Item Number - 127654 DODGE - WSTU-DLEZ-30M-PCR
Category - E-Z KLEEN Mounted Bearings (DLEZ Normal Duty Polymer Housed Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (mm) - 30
Description - WSTU-DLEZ-30M-PCR
Description (Standard Insert With Flingers) - WSTU-DLEZ-30M-P
Weight (kg) - 0.49
Take-up Frame Number - WS300

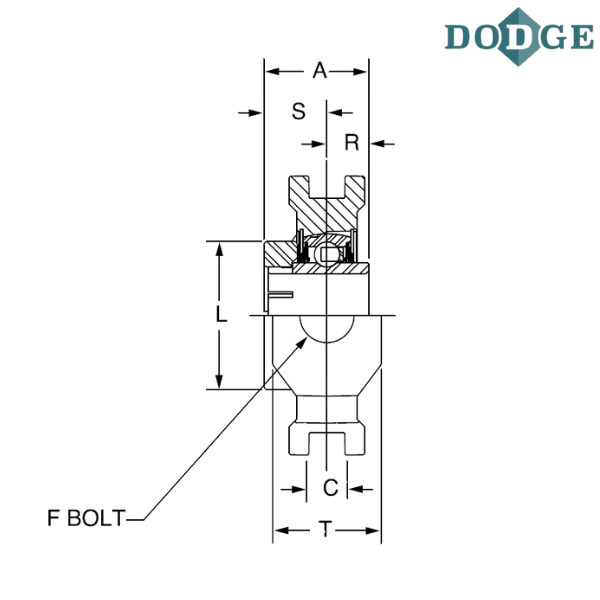

Length Through Bore (A) mm - 39.6
Overall Length (B) mm - 114
C (mm) - 13.46
D (mm) - 58.2
E (mm) - 72.6
F (Thread Shaft) mm - 19.1
G (mm) - 14.2
H (mm) - 16.5
J (mm) - 61.2
K (mm) - 20.6
L (mm) - 56.4
M (mm) - 89.54/88.77
Overall Width (N) mm - 106.7
R (mm) - 14.7
S (mm) - 24.9
Thickness (T) mm - 41.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

** Images are for representation purposes only
