129242 DODGE - P2B-GTMAH-215

Brand - DODGE
Item Number - 129242 DODGE - P2B-GTMAH-215
Category - GRIP TIGHT Adapter Ball Bearings (GMTAH Air Handling Medium Duty Pillow Blocks)
Series - 216
Shaft Size (inch) - 2.9375
Description - P2B-GTMAH-215
Part Number (Unit without Adapter Sleeve and Nut) - 129455
Description (Unit without Adapter Sleeve and Nut) - P2B-GTAH-16
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136550
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-16-215-D
Weight (lbs) - 25.4

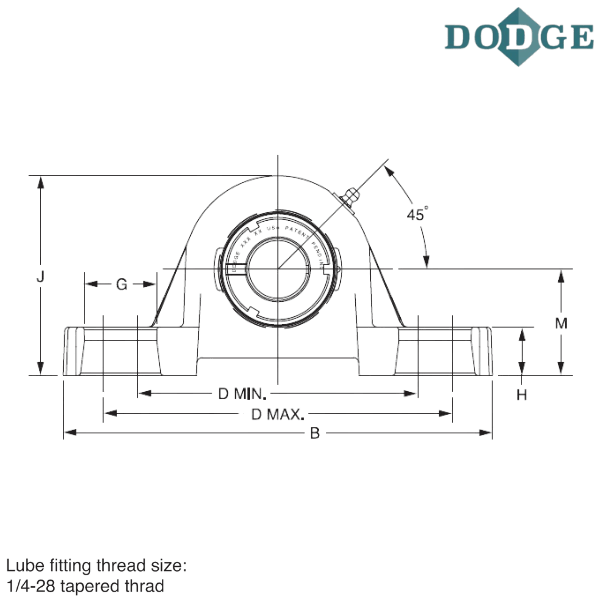

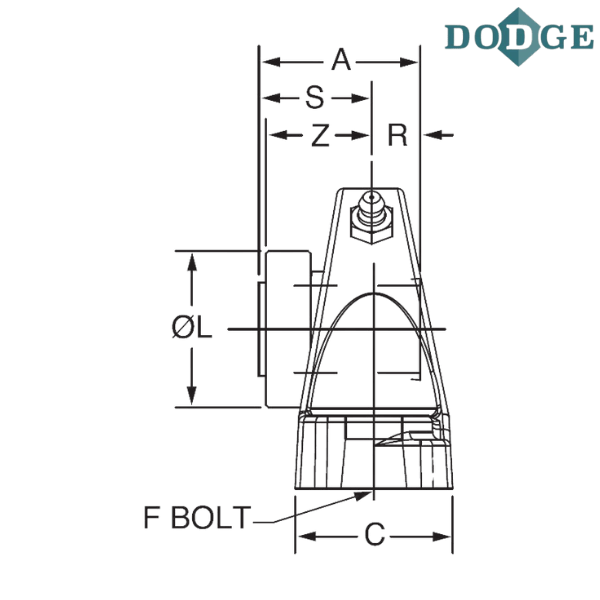

Length Through Bore (A) inch - 2.7
Overall Length (B) inch - 11.75
Width (C) inch - 3
Bolt to Bolt Minimum Distance (D min) inch - 8.5
Bolt to Bolt Maximum Distance (D max) inch - 9.5
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.44
H (inch) - 1.25
Overall Height (J) inch - 6.97
L (inch) - 4.69
Base to Center Height (M) inch - 3.5
R (inch) - 0.89
S (inch) - 1.81

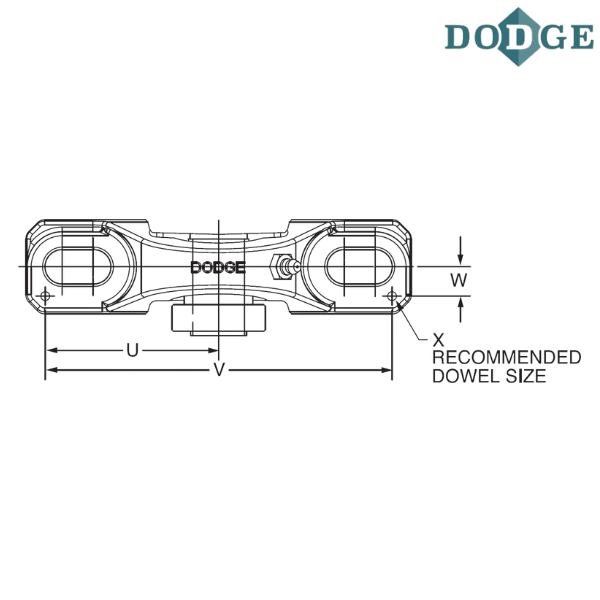

U (inch) - 5.5
V (inch) - 11
W (inch) - 1.09
X (inch) - 0.12
Z (inch) - 1.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
AH - Air Handling

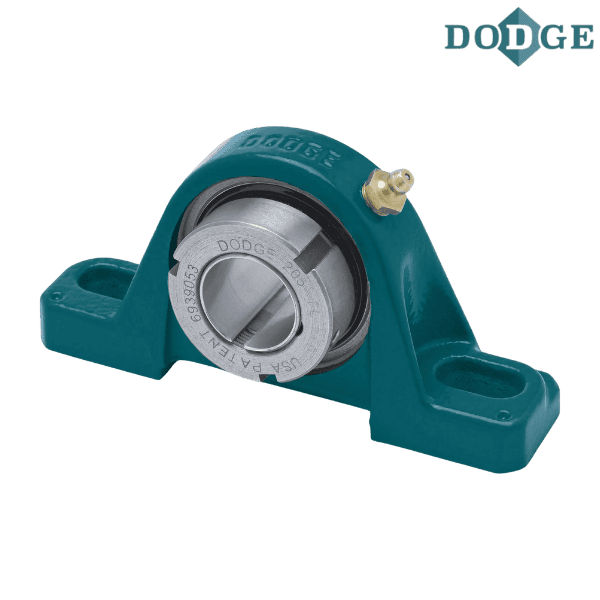

** Images are for representation purposes only
