129279 DODGE - TB-GT-102

Brand - DODGE
Item Number - 129279 DODGE - TB-GT-102
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.125
Description - TB-GT-102
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129459
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136525
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-102-D
Weight (lbs) - 3.6

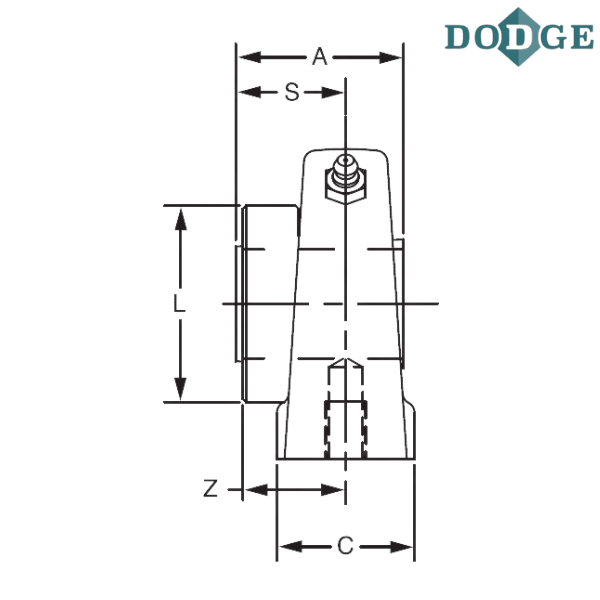

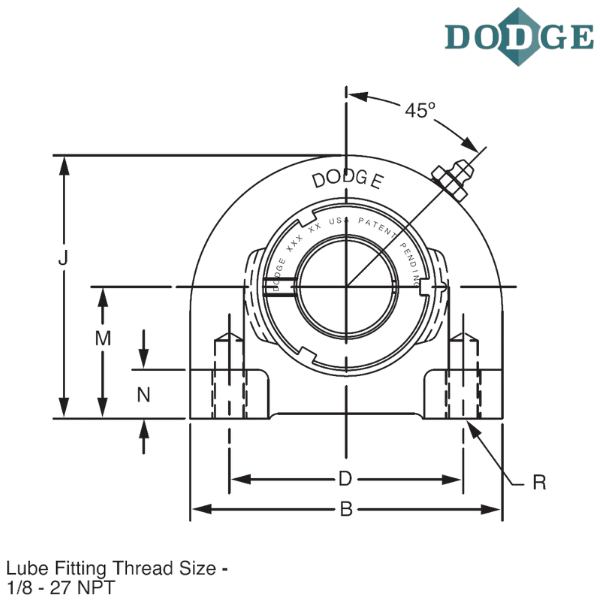

Length Through Bore (A) inch - 1.61
Overall Length (B) inch - 4
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 3
Overall Height (J) inch - 3.38
L (inch) - 2.08
Base to Center Height (M) inch - 1.69
N (inch) - 0.63
UNC -Thread (R) inch - 0.4375-14
S (inch) - 1.09
Z (inch) - 1.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
