129334 DODGE - F2B-GTM-111

Brand - DODGE
Item Number - 129334 DODGE - F2B-GTM-111
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.6875
Description - F2B-GTM-111
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129497
Description (Unit without Adapter Sleeve and Lock Nut) - F2B-GT-10
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136544
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-10-111-D
Weight (lbs) - 7

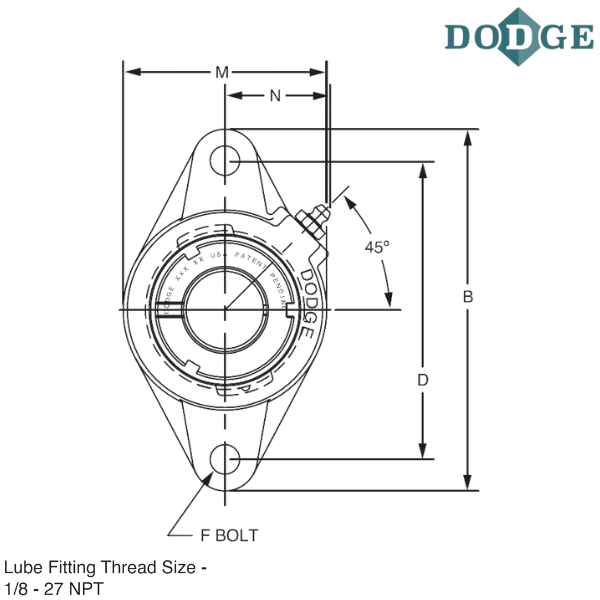

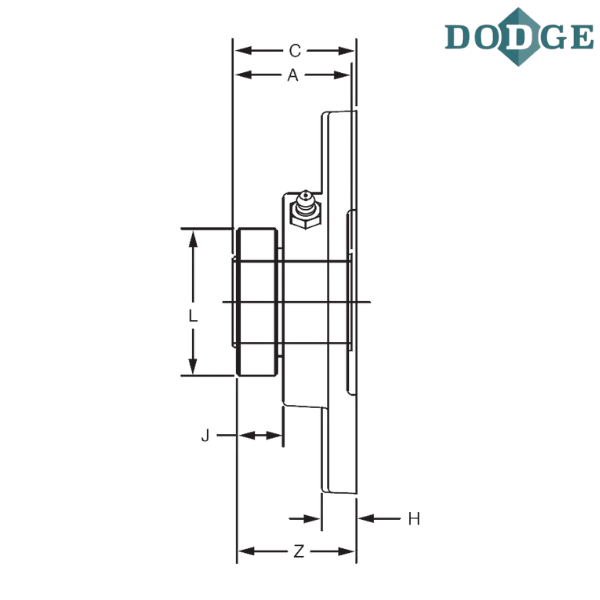

Length Through Bore (A) inch - 1.86
Overall Length (B) inch - 7.44
Thickness (C) inch - 2.07
Bolt Center to Center Length (D) inch - 6.19
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.63
L (inch) - 3.13
Overall Width (M) inch - 4.56
N (inch) - 2.03
Z (inch) - 2.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
