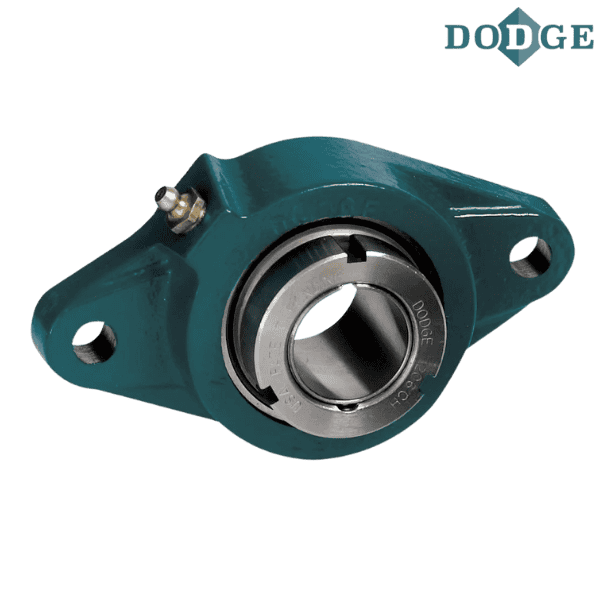

129369 DODGE - F2B-GTM-012

Brand - DODGE
Item Number - 129369 DODGE - F2B-GTM-012
Category - GRIP TIGHT Adapter Ball Bearings (GTAH Air Handling Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.75
Shaft Size (mm) - 19.05
Description - F2B-GTM-012
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129492
Description (Unit without Adapter Sleeve and Lock Nut) - F2B-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136597
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-05-012-D
Weight (lbs) - 2.1

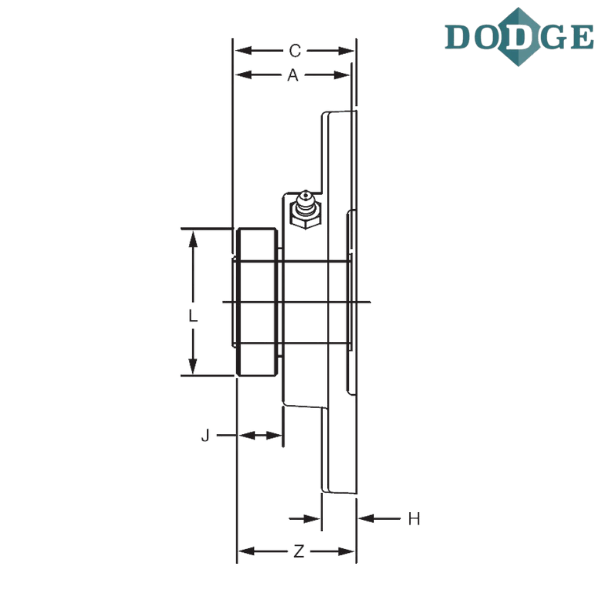

Length Through Bore (A) inch - 1.46
A (mm) - 37.1

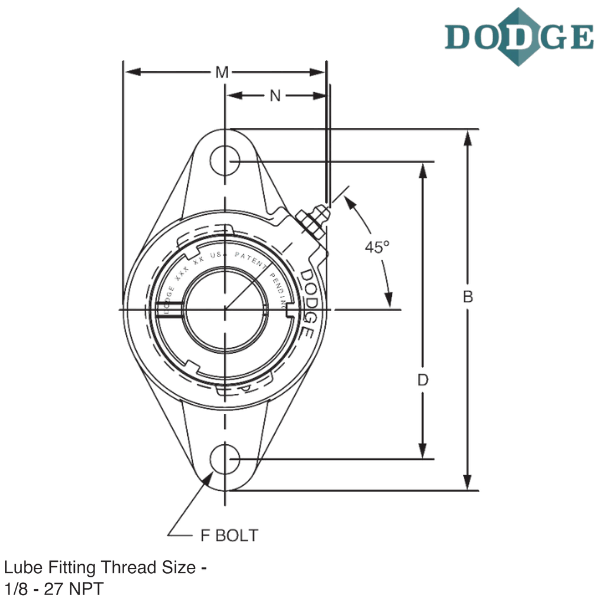

Overall Length (B) inch - 4.88
B (mm) - 124
Thickness (C) inch - 1.57
C (mm) - 39.9
Bolt Center to Center Length (D) inch - 3.89
D (mm) - 98.8
F-Bolt Diameter (inch) - 0.4375
Bolt Diameter (F) mm - M10
H (inch) - 0.52
H (mm) - 13.2
J (inch) - 0.63
J (mm) - 16
L (inch) - 1.8
L (mm) - 45.7
Overall Width (M) inch - 2.75
M (mm) - 69.9
N (inch) - 1.44
N (mm) - 36.6
Z (inch) - 1.59
Z (mm) - 40.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
GTM - Wide inner ring, medium duty, thin wall adapter locking

** Images are for representation purposes only
