129380 DODGE - FC-GT-204

Brand - DODGE
Item Number - 129380 DODGE - FC-GT-204
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Piloted Flange Bearings)
Series - 211
Shaft Size (inch) - 2.25
Description - FC-GT-204
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129506
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-11
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136537
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-11-204-D
Weight (lbs) - 6.9

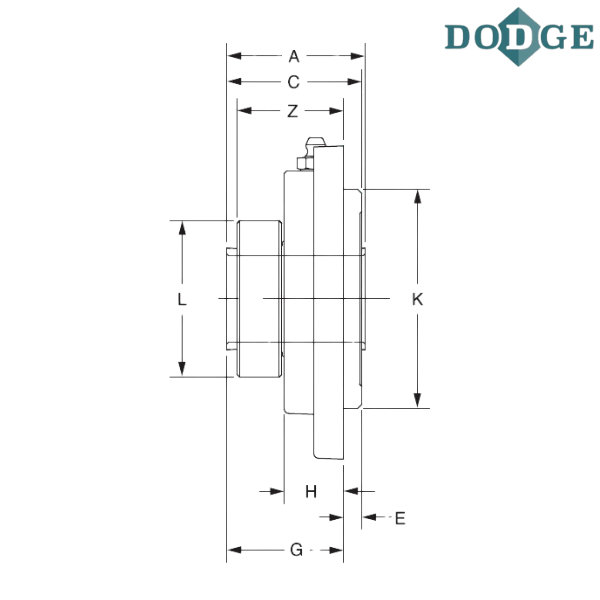

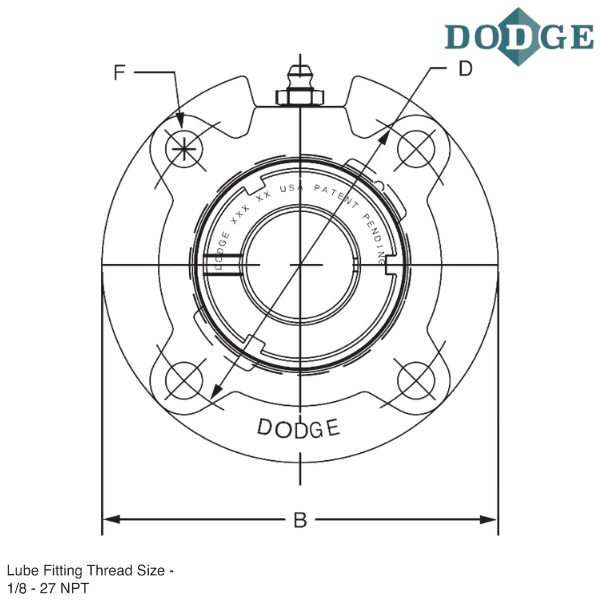

Length Through Bore (A) inch - 1.93
Overall Length (B) inch - 6.38
Thickness (C) inch - 2.26
Bolt Circle (D) inch - 5.38
Pilot Depth (E) inch - 0.63
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.63
H (inch) - 1
Pilot Diameter (K) inch - 4.500/4.498
L (inch) - 3.43
Z (inch) - 1.69
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GT - Wide inner ring, normal duty, thin wall adapter locking

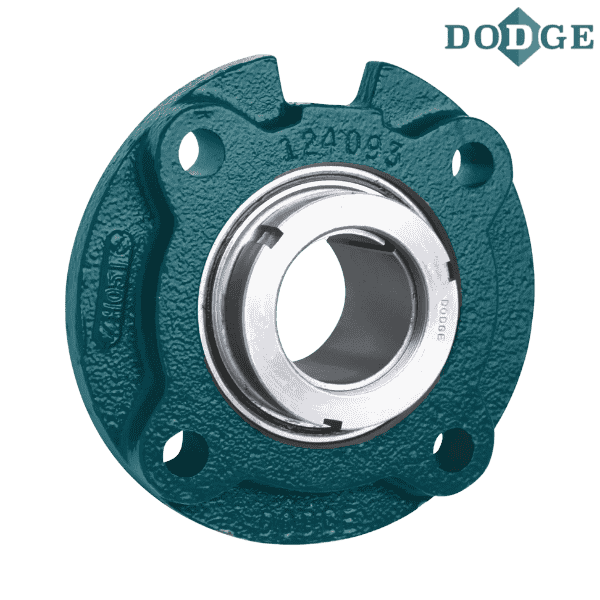

** Images are for representation purposes only
