129417 DODGE - INS-GTM-012

Brand - DODGE
Item Number - 129417 DODGE - INS-GTM-012
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Bearing Inserts)
Series - 205
Shaft Size (inch) - 0.75
Shaft Size (mm) - 19.05
Description - INS-GTM-012
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129518
Description (Unit without Adapter Sleeve and Lock Nut) - INS-GT-05
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136597
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-05-012-D
Weight (lbs) - 0.9
Overall Width (A) inch - 1.46
Overall Width (A) mm - 37.1
C (inch) - 0.59
C (mm) - 15
Overall Length (D) inch - 2.0472
Overall Length (D) mm - 52
J (inch) - 0.16
J (mm) - 4.1
L (inch) - 1.8
L (mm) - 45.7
SetScrew, UNF (N) - 10-32 x 1/4
W (inch) - 0.48
W (mm) - 12.2
X (inch) - 1
X (mm) - 25.4
Y (inch) - 0.98
Y (mm) - 24.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
GTM - Wide inner ring, medium duty, thin wall adapter locking

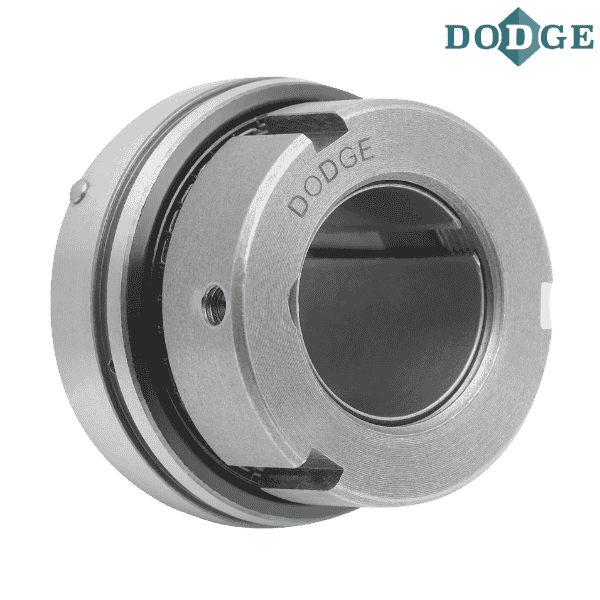

** Images are for representation purposes only
