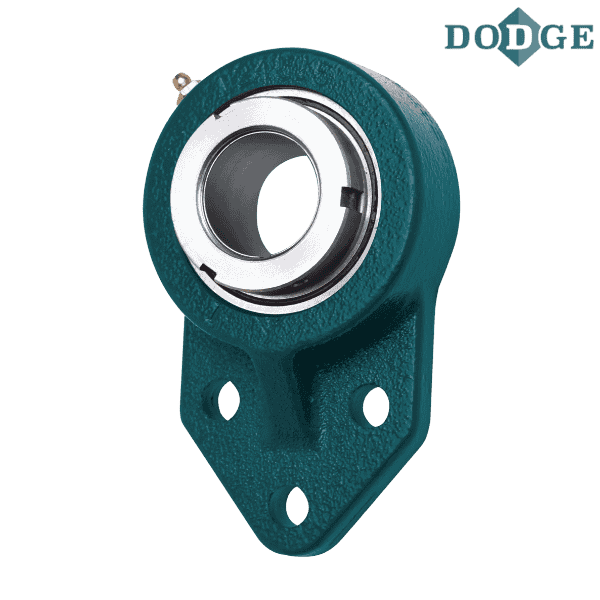

129615 DODGE - FB-GT-012

Brand - DODGE
Item Number - 129615 DODGE - FB-GT-012
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Flanged Bracketed Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description (Complete Unit) - FB-GT-012
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129511
Description (Unit without Adapter Sleeve and Lock Nut) - FB-GT-04
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136522
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-04-012-D
Weight (lbs) - 1.3

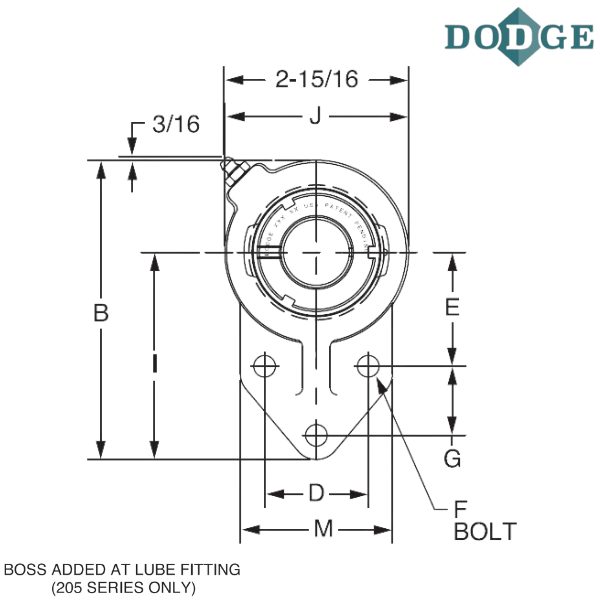

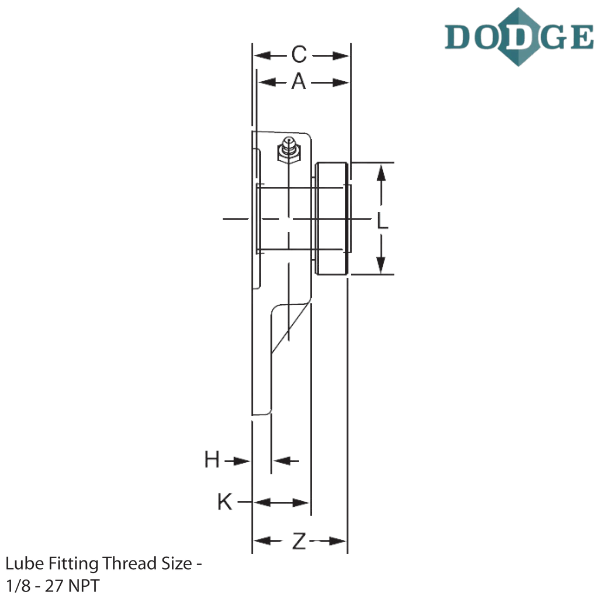

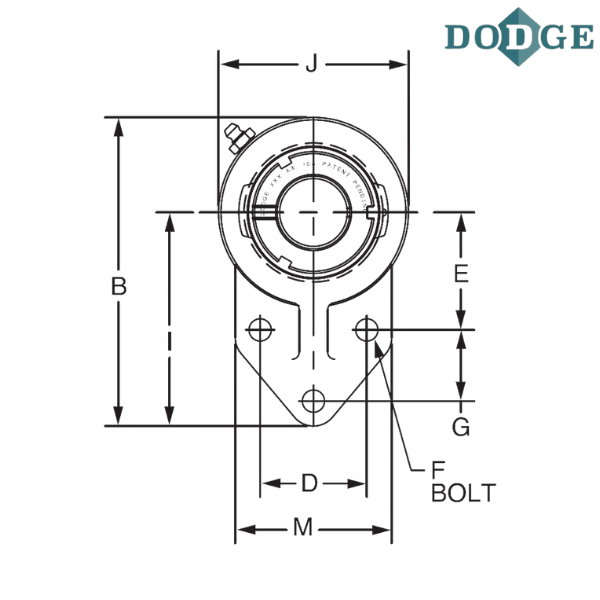

Length Through Bore (A) inch - 1.46
Overall Length (B) inch - 4.75
Thickness (C) inch - 1.71
Bolt Center to Center Length (D) inch - 1.63
E (inch) - 1.81
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.13
H (inch) - 0.38
I (inch) - 3.38
Overall Width (J) inch - 2.75
K (inch) - 1.11
L (inch) - 1.8
M (inch) - 2.5
Z (inch) - 1.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FB - Flange bracket
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
